Parking Barrier Gate
As a China manufacturer and supplier, ZOJE provides the ZOJE-PB300 Parking Barrier Gate with multiple boom arm options—including straight, fence, telescopic, and folding types—to suit different installation scenarios. The system supports integration with infrared sensors, loop detectors, RFID card readers, ticket dispensers, and traffic lights, allowing it to adapt to both standalone and networked traffic management systems.
Model:ZOJE-PB300
Send Inquiry
Product Description

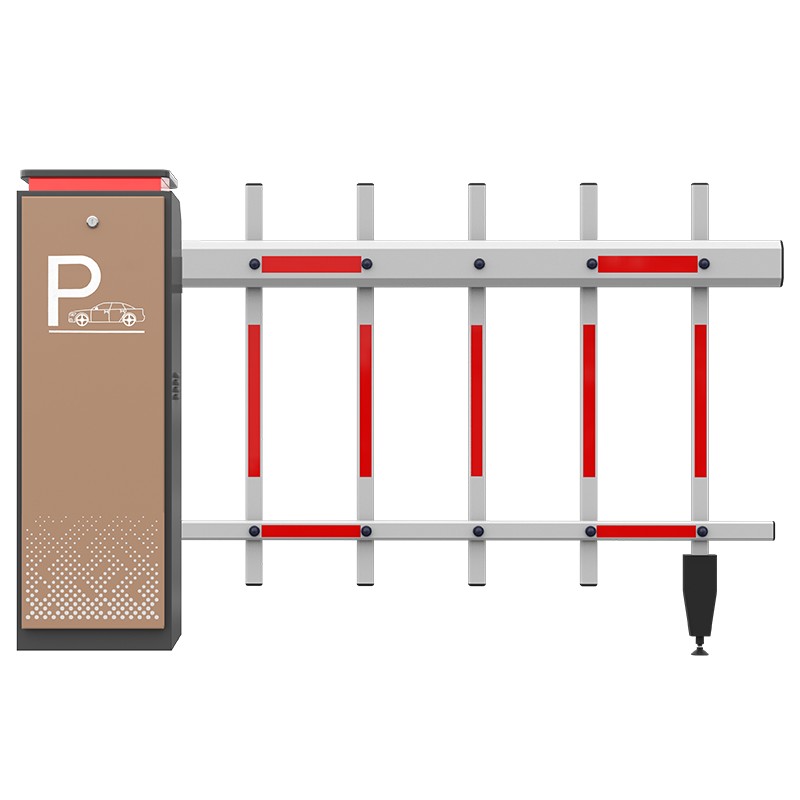

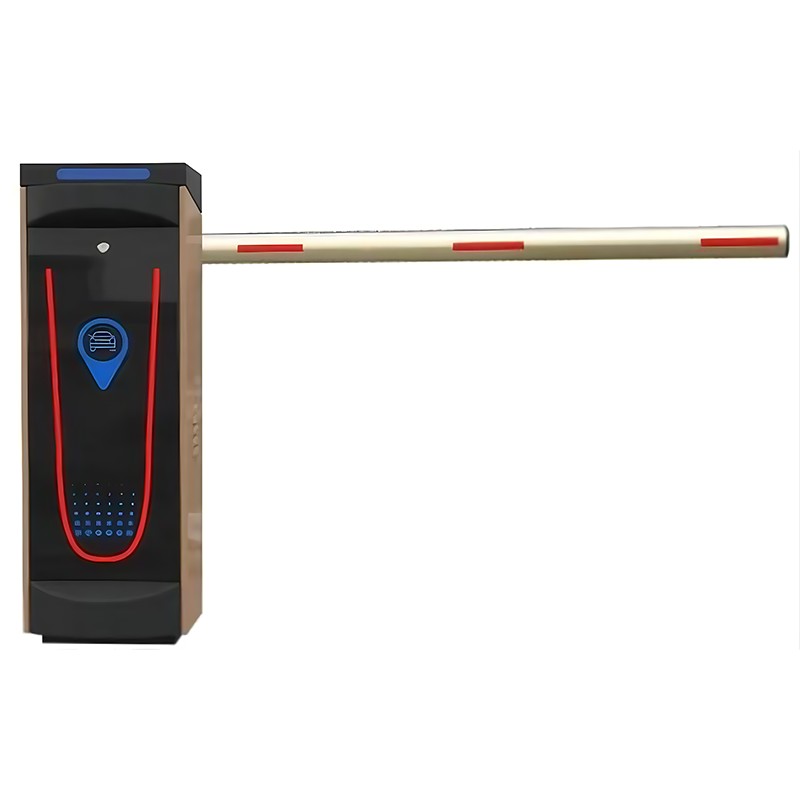

ZOJE-PB300 Electromechanical Boom Barriers Gate is divided into straight arm, fence arm, telescopic arm and fold arm(90 degrees or 180 degrees) The appropriate arm type can be selected according to different scenarios.
ZOJE-PB300 works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light.
ZOJE-PB300 works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light.
Applications
Commercial & Retail Hubs
Residential & Community Management Industrial & Logistics Zones
Public Infrastructure Specialized Project Sites
Residential & Community Management Industrial & Logistics Zones
Public Infrastructure Specialized Project Sites
Features
Adjustable Speed: 1.5s – 8s.
Flexible Arm: Left/Right interchangeable. Smart Safety: Auto-reverse on obstacles + Loop/Radar support.
Emergency Access: Auto-lifts when power is off.
Dual Signals: Relay output for Barrier & Traffic lights. Full Integration: Supports RFID, QR, and Biometrics. Custom Arm Types: Straight, Fence, Folding, Telescopic.
Flexible Arm: Left/Right interchangeable. Smart Safety: Auto-reverse on obstacles + Loop/Radar support.
Emergency Access: Auto-lifts when power is off.
Dual Signals: Relay output for Barrier & Traffic lights. Full Integration: Supports RFID, QR, and Biometrics. Custom Arm Types: Straight, Fence, Folding, Telescopic.
Datasheet
| Type: | Boom Barriers Gate |
| Cabinet material： | Cold rolled stee |
| Working Temperature： | -30°C~+70°C |
| Open/close Speed： | 1.5s-8s |
| Rated Power： | 200W |
| Driving Method： | DC 24V,Brushless Motor |
| Remote Control Distance： | ≤100m(open,sunny weather) |
| Max Boom Length： | Single / bidirectional |
| Power Supply: | AC110-230V,50/60Hz |
| LED indicator | Yes |
| Bi-direction main shaft： | LEFT or RIGHT |
| Optional: |
|
| 1)Cabinet Material: | 316/304 stainless steel |
| 2)Motro: | Brushless motor / Servo motor |
| 3)Arm length: | Max 8m |
| Protection Grade： | Auto open |
| Water Proof: | IP 54 |
| Access control: | Can be integrated with any kind of access control |
| MTBF: | 10million |
Optinal
Adjustable Speed: 1.5s – 8s flexibility.
Solid Build: Steel housing + Aluminum boom. Smooth Motion: Stable 3-link crank structure. Safety: Triple anti-crush + Tamper alarm.br> Smart Tech: LPR/ETC/Bluetooth & Cloud ready.
Solid Build: Steel housing + Aluminum boom. Smooth Motion: Stable 3-link crank structure. Safety: Triple anti-crush + Tamper alarm.br> Smart Tech: LPR/ETC/Bluetooth & Cloud ready.
Tips
All ZOJE Parking Barrier Gate s are built with self-designed mechanical structure for stable and long-time operation
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
