High Speed Parking Barrier
ZOJE-PB500 High Speed Parking Barrier is a high-performance electromechanical boom barrier designed for efficient access control in various scenarios, including commercial & retail hubs, residential communities, industrial & logistics zones, public infrastructure, and specialized project sites. It offers four customizable arm types—straight arm, fence arm, telescopic arm, and fold arm (90°/180°)—with left/right interchangeable arms to adapt to different site layouts.
Model:ZOJE-PB500
Send Inquiry
Product Description

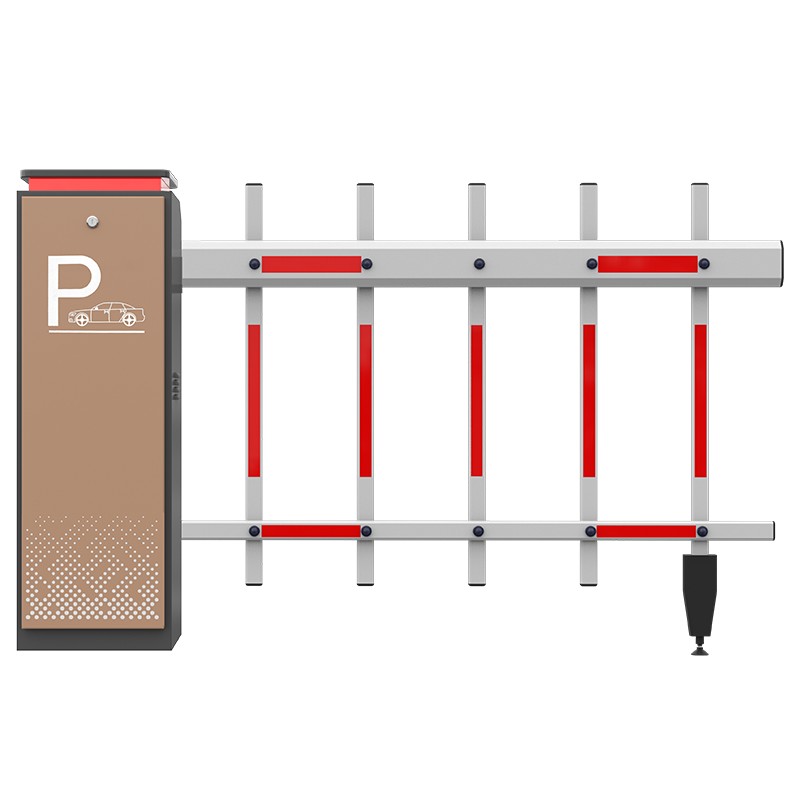

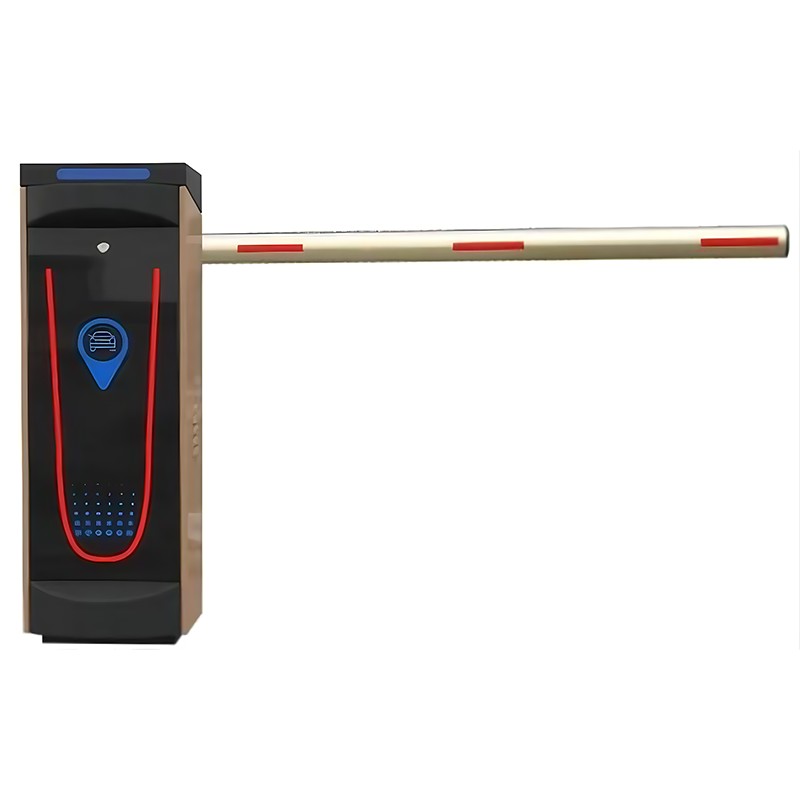

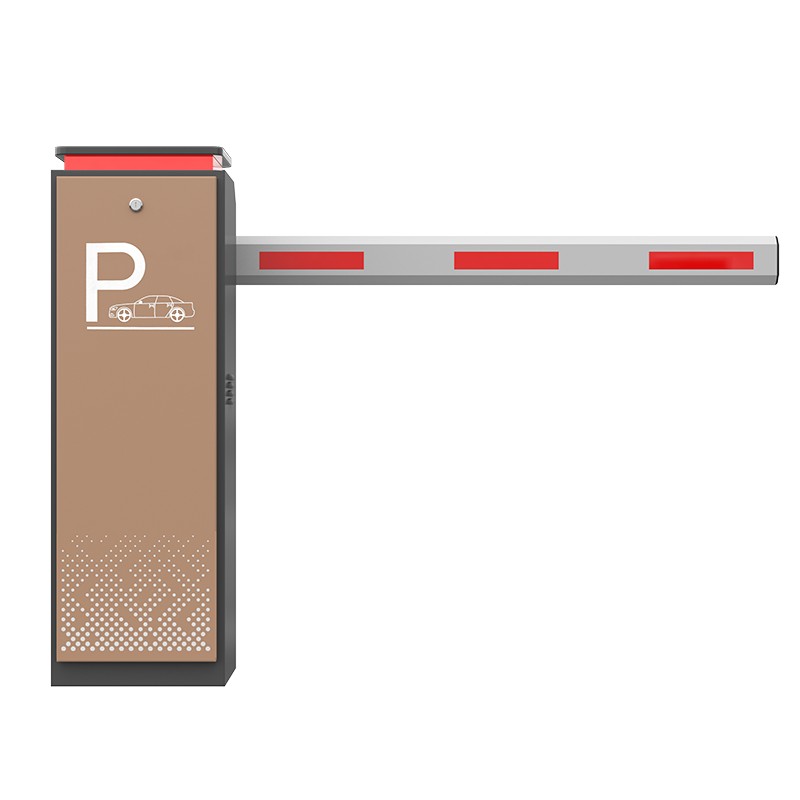

ZOJE-PB500 Electromechanical Boom Barriers Gate is divided into straight arm, fence arm, telescopic arm and fold arm(90 degrees or 180 degrees) The appropriate arm type can be selected according to different scenarios.
ZOJE-PB500 works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light.
ZOJE-PB500 works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light.
Applications
Commercial & Retail Hubs
Residential & Community Management Industrial & Logistics Zones
Public Infrastructure Specialized Project Sites
Residential & Community Management Industrial & Logistics Zones
Public Infrastructure Specialized Project Sites
Features
Adjustable Speed: 1.5s – 8s.
Flexible Arm: Left/Right interchangeable. Smart Safety: Auto-reverse on obstacles + Loop/Radar support.
Emergency Access: Auto-lifts when power is off.
Dual Signals: Relay output for Barrier & Traffic lights. Full Integration: Supports RFID, QR, and Biometrics. Custom Arm Types: Straight, Fence, Folding, Telescopic.
Flexible Arm: Left/Right interchangeable. Smart Safety: Auto-reverse on obstacles + Loop/Radar support.
Emergency Access: Auto-lifts when power is off.
Dual Signals: Relay output for Barrier & Traffic lights. Full Integration: Supports RFID, QR, and Biometrics. Custom Arm Types: Straight, Fence, Folding, Telescopic.
Datasheet
| Type: | Boom Barriers Gate |
| Cabinet material： | Cold rolled stee |
| Working Temperature： | -30°C~+70°C |
| Open/close Speed： | 1.5s-8s |
| Rated Power： | 200W |
| Driving Method： | DC 24V,Brushless Motor |
| Remote Control Distance： | ≤100m(open,sunny weather) |
| Max Boom Length： | Single / bidirectional |
| Power Supply: | AC110-230V,50/60Hz |
| LED indicator | Yes |
| Bi-direction main shaft： | LEFT or RIGHT |
| Optional: |
|
| 1)Cabinet Material: | 316/304 stainless steel |
| 2)Motro: | Brushless motor / Servo motor |
| 3)Arm length: | Max 8m |
| Protection Grade： | Auto open |
| Water Proof: | IP 54 |
| Access control: | Can be integrated with any kind of access control |
| MTBF: | 10million |
Optina
Adjustable Speed: 1.5s – 8s flexibility.
Solid Build: Steel housing + Aluminum boom. Smooth Motion: Stable 3-link crank structure. Safety: Triple anti-crush + Tamper alarm.
Smart Tech: LPR/ETC/Bluetooth & Cloud ready.
Solid Build: Steel housing + Aluminum boom. Smooth Motion: Stable 3-link crank structure. Safety: Triple anti-crush + Tamper alarm.
Smart Tech: LPR/ETC/Bluetooth & Cloud ready.
Tips
All ZOJE High Speed Parking Barriers are built with self-designed mechanical structure for stable and long-time operation
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product
