ZOJE Swing Turnstile: Custom Access Control Builds for Museum Ticketing Entrances

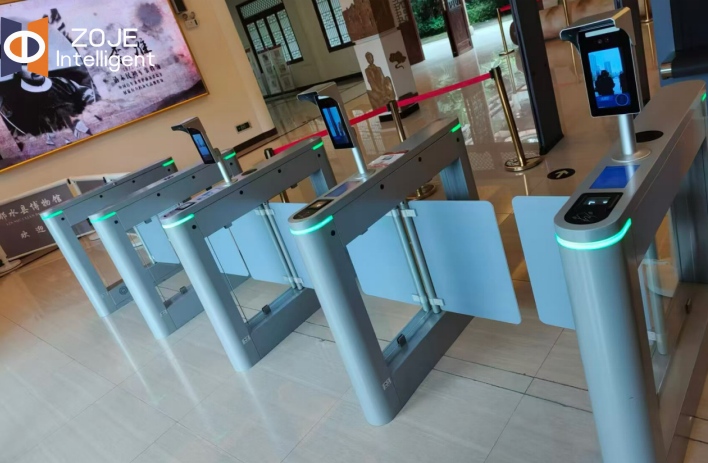

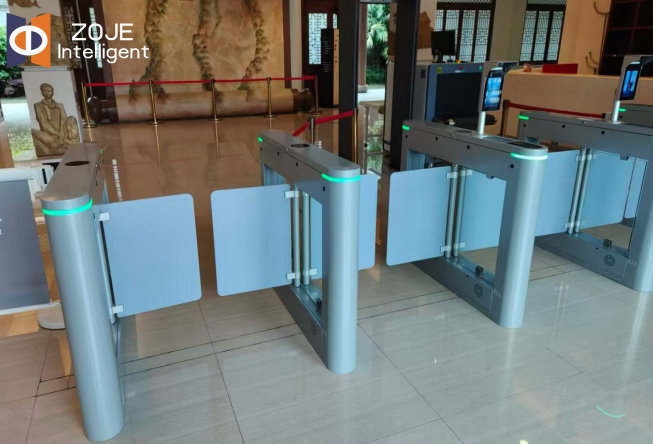

A museum ticket entrance needed a controlled entry system. Not just any gate. Something that could handle visitor flow and still look like it belonged there. The client came to ZOJE. They had seen the standard Swing turnstile models online. But the finish was wrong. Too shiny. Too industrial. They wanted a matte frosted look. And a custom color. So ZOJE made that happen. The shape was adjusted a little too. Not a huge change. Just enough. The final Swing turnstile units went in at the ticket entrance. They control people going in and out. That’s the short version.
The matte frosted finish was not only about looks. It cuts glare. Museum lighting can be harsh. And brushed steel shows every fingerprint. Matte does not. So the equipment stays cleaner longer. That matters when you have thousands of visitors. ZOJE sent samples first. The museum picked one. Then ZOJE matched the coating. A couple of tries maybe. But it worked out. This kind of customization is normal for ZOJE. Not every client wants the same thing. Some just take the standard. Some want changes. Both are fine.

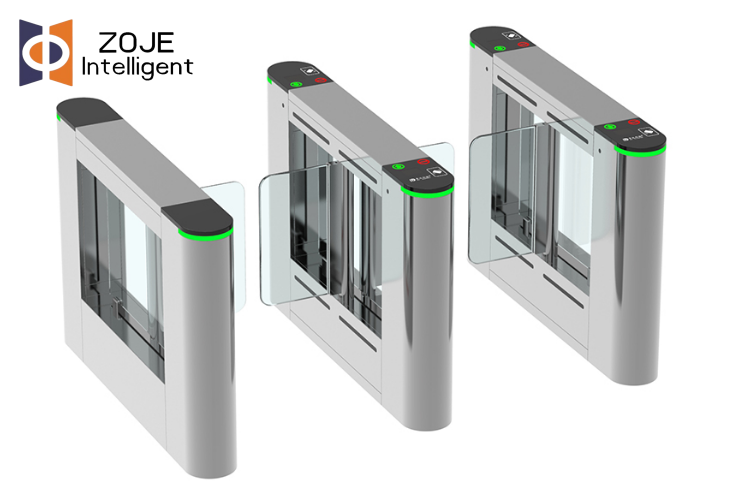

The Swing turnstile itself is based on a standard platform. ZOJE-B202. One of the popular ones. Used in offices, banks, public venues. The cabinet is normally 304 stainless steel. Or 316 if you need more corrosion resistance. For this museum, indoors, 304 was fine. Dimensions are 1400 by 146 or 203 by 1000mm. Channel width 600mm standard. Can go to 900mm if needed. Door material? Acrylic or tempered glass. Museum chose acrylic. Lighter. Still strong enough.
Each Swing turnstile controls pedestrian access. Bidirectional usually. High traffic areas. Museum ticket entrance is exactly that. People come in waves. Need to move them fast. Pass speed is 35 people per minute. Unlock time 0.2 seconds. That is quick. Motor is brush type standard. Brushless or servo available if you need more. Museum did not. Standard was fine. Power is AC110-230V. Operation voltage DC24V 3A. Direction can be single or bidirectional. They picked bidirectional. Makes sense because sometimes people exit through the same gate.
Environment specs? Standard model works indoor and outdoor. Temperature range -70 to 15 Celsius. Humidity less than 95%, no condensation. Waterproof IP67. But this was indoors. So IP67 was not the main thing. The matte finish and custom color were. Still,Swing turnstile having IP67 gives options later. You never know.
Safety. Big deal. The has optical sensors. They detect people approaching. So doors do not close on anyone. Anti-clamping, anti-pinch. Fail-safe is standard. Emergency? Arm opens automatically. Free passage. Important in a museum. Also has traffic indicator. Visitors know when to go. Automatic reset. Automatic protection. And a testing function. That helps maintenance. If something breaks, system can diagnose itself. Less downtime. No one wants a gate stuck closed on a busy Saturday.
Integration with the museum’s ticketing system. ZOJE provided a standard external electrical interface. Connects to different readers. Museum used QR code scanners. But the Swing turnstile can also do RFID, fingerprint, face recognition, ID card, IC card, EM card. Communication interface is RS485 or TCPIP. So it linked to their building management system. Their IT team did the software. They said it was easy. Also accepts dry contact and relay signals. Not every project is that smooth, but this one was.
The museum project was not just hardware. It was about balance. Security and looks. A standard gate would work. But it would not fit. The custom Swing turnstile made it look intentional. Matte frosted finish made it less industrial. Custom color blended with interior. Client was happy. ZOJE also gave wiring diagrams and a user manual. Maintenance staff got basic training. They can handle simple troubleshooting. ZOJE is still available for support. But the goal is to make it easy. Museum staff have better things to do than babysit a turnstile.
ZOJE has been making turnstiles for years. The company controls production. Mechanical structure is self-developed. Motor is tested for reliability. The Swing turnstile also has traffic indicator and automatic reset standard. These details matter. A museum sees thousands of visitors weekly. Equipment needs to work without constant attention. The matte frosted surface has held up. Still looks clean. No major issues reported. That is good feedback.
For projects needing a Swing turnstile, ZOJE offers options. Channel width custom. Door material acrylic or tempered glass. Motor brush, brushless, servo. Finish brushed stainless steel, matte frosted, or custom. Access control interface adapts to RFID, QR code, fingerprint, face recognition. ZOJE can provide CAD drawings. Wiring diagrams. This flexibility helps museums, offices, banks, transit stations. If you are planning something, talk through options early.
The museum ticket entrance project shows how a Swing turnstile can be adapted. Client needed more than standard. They needed access control, ticketing integration, and design match. ZOJE delivered by adjusting shape, color, finish. Matte frosted texture was small change. Made a visible difference. Units now operate. Manage visitor flow. Reliable system. Does not look out of place.
ZOJE continues to develop Swing turnstile products. The company works with clients to understand requirements before production. Traffic volume. Channel width. Access control method. Appearance. For museum, main request was finish. For another project, maybe wider channel or different motor. ZOJE handles standard and custom. Goal is to fit the site, not force site to fit equipment. Sometimes that means saying no. But usually there is a way.
If you need a Swing turnstile, ZOJE can quote. Technical details. PDF spec sheets. Dimensions. Integration info. Custom finishes. The museum project is one example. Client had a need. ZOJE listened. Offered options. Delivered. For more info, contact ZOJE. Or download spec sheet. See if standard fits. If not, ask about customization. That is what happened here.
