How Does ZOJE Apply Tripod Turnstile at Scenic Spot and Amusement Park Ticket Entrances

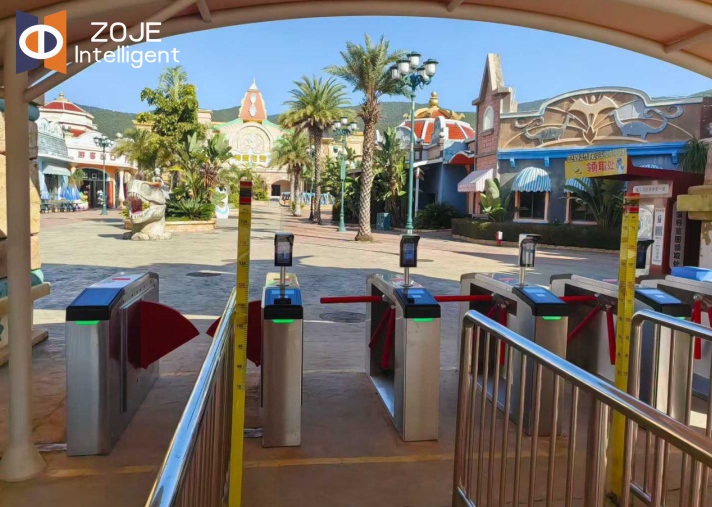

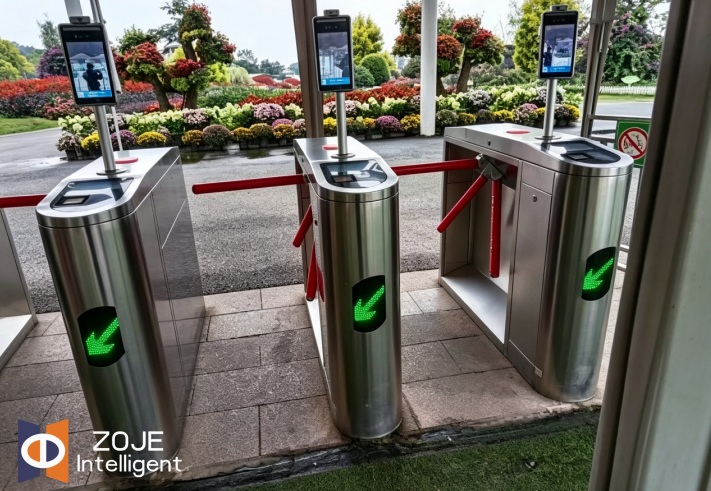

A scenic spot ticket entrance and an amusement park ticket entrance both needed a reliable gate. Not a complicated one. Just something that could handle crowds, work outdoors, and connect to a ticketing system. ZOJE supplied tripod turnstile units for both projects. The model used was the ZOJE-S906 heavy duty tripod turnstile. The first image shows the scenic spot installation. The third image shows the amusement park installation. Both use the same basic design. Stainless steel cabinet. Red arms. LED indicators. A screen on top for ticket verification.

The tripod turnstile is a common choice for ticketing places. It has three arms that rotate. One person passes at a time. That helps prevent trailing. Someone cannot sneak in behind another person. For a scenic spot or an amusement park, that matters. Every ticket needs to be checked. The tripod turnstile makes that easier.

ZOJE makes several types of turnstiles.

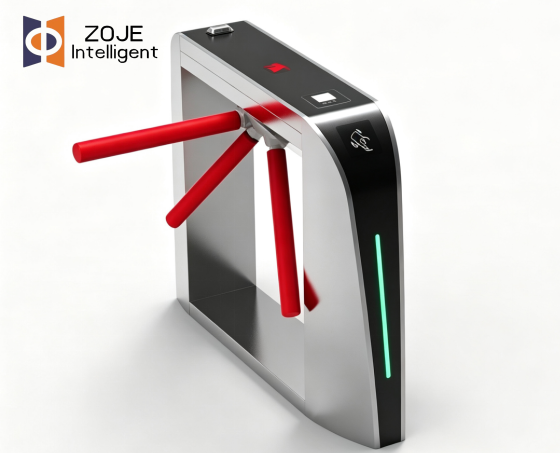

 The tripod turnstile is one of the more cost-effective options. It is compact. It is also durable. The ZOJE-S906 heavy duty tripod turnstile is built for outdoor use. The cabinet is made from brushed stainless steel 304 or 316. That means it is rust-resistant. It can handle rain, sun, and temperature changes. The working temperature range is -70°C to 15°C. Humidity can be less than 95% with no condensation. So it works in many climates.

The cabinet on the ZOJE-S906 is longer and larger than some other tripod turnstile models. That extra space is useful. It allows ZOJE to integrate multiple systems at the same time. For example, a coin collector. A paper ticket collector. An IC card reader. An ID card reader. RFID. HID. A QR code scanner. Fingerprint. Face recognition. All of these can go into one cabinet. That makes the tripod turnstile flexible. A scenic spot might use QR code tickets. An amusement park might use RFID wristbands. Both can work with the same basic unit.

The raised screen display sector is another feature.It shows visitors the verification result. So when someone scans a ticket, the screen tells them if it is valid. That reduces confusion at the gate. It also speeds up entry. The pass speed is 35 persons per minute. The unlock time is 0.2 seconds. That is fast enough for a busy ticket entrance. During peak season, every second counts.

The drive type can be semi-automatic or automatic. The standard is semi-automatic with a solenoid. That means the arm releases when a valid signal is received. The visitor pushes the arm to pass. The optional automatic version uses a brush motor, brushless motor, or servo motor. That can be useful for higher traffic or for integration with automated systems. For the scenic spot and amusement park projects, ZOJE supplied the appropriate drive type based on the client’s needs.

One unique feature of the ZOJE heavy duty tripod turnstile is the hydraulic buffer device. It makes the system run more smoothly. It also reduces noise. And it extends the service life. A tripod turnstile with a hydraulic buffer does not slam or jerk. It rotates quietly. That is better for the visitor experience. It also means less wear on the mechanical parts. So maintenance costs stay lower over time.

Safety is another important point. In case of emergency, the tripod turnstile arm drops down automatically when power is off. That allows free passage. People can exit quickly. This is a standard fail-safe function. It is required in many public venues. A scenic spot or amusement park must have a safe evacuation route. The drop-arm design helps with that.

The tripod turnstile also has automatic reset and automatic protection. If a visitor does not pass within a certain time, the arm resets. That prevents unauthorized entry. The unit also has a device and circuit testing function. That makes maintenance easier. If something goes wrong, the system can often diagnose itself. A technician can then fix the issue faster. Less downtime for the ticket entrance.

ZOJE provides a unified standard external electrical interface. This allows the tripod turnstile to connect with various reading and writing devices. The communication interface supports RS485 or TCPIP. Input interface is dry contact or relay signal. So integration with an existing ticketing system is straightforward. The scenic spot project used a QR code scanner. The amusement park project used a combination of QR code and RFID. Both connected to the venue’s management software. The client’s IT team handled the software side. ZOJE provided the hardware and wiring diagrams.

The tripod turnstile is not just for scenic spots and amusement parks. ZOJE also supplies these units for libraries, gyms, construction sites, and other places. Construction sites use them for employee access management. Gyms use them for ticketing. Libraries use them for entry control. The common factor is a need for reliable, low-cost pedestrian access control. The tripod turnstile fits that need.

Compared to a swing turnstile or a flap barrier, the tripod turnstile has some specific advantages. It is usually less expensive. It has fewer moving parts. The mechanical structure is simpler. That makes it easier to maintain. It also has a smaller footprint in some ways. The channel width is ≤500mm or ≤550mm. That is narrower than a swing gate. But for ticketing, that is fine. One person at a time. The three-arm design naturally prevents tailgating. It is also very durable. The stainless steel cabinet can take a lot of use.

For outdoor installations, the tripod turnstile is a good fit. It can handle dust, rain, and heat. The working environment is indoor and outdoor. The cabinet material is rust-resistant. The arms are also stainless steel. So the unit holds up well. The scenic spot and amusement park projects both used the tripod turnstile outdoors. They have been in operation without major issues.

ZOJE can customize the tripod turnstile for different projects. ZOJE offers customized dimensions. The material thickness can be 1.2mm, 1.5mm, or 2.0mm. The standard is 1.5mm. The finish can be brushed stainless steel. Or galvanized. Or powder coated. The direction can be single or bidirectional. The power supply is AC110-230V, 50/60Hz. Operation voltage is DC24V, 3A. These options let ZOJE match the tripod turnstile to the site.

The ZOJE-S906 heavy duty tripod turnstile also has a warranty. One year for electric parts. Two years for mechanical parts. That shows ZOJE stands behind the product. For a scenic spot or amusement park, that kind of support matters. The equipment runs every day. It needs to be reliable.

ZOJE has been manufacturing turnstiles for many years. The company controls the production process. The mechanical structure is self-developed. The motor is tested for long-term reliability. The tripod turnstile is one of ZOJE’s popular products. It is used in many countries. The scenic spot and amusement park projects are just two examples.

If a venue needs a tripod turnstile, ZOJE can provide a quotation and technical details. ZOJE offers PDF spec sheets. Product dimensions. Integration information. Custom finishes. The company can also advise on the right drive type and access control modules. For a scenic spot, a QR code scanner might be enough. For an amusement park, RFID and face recognition might be needed. ZOJE can configure the tripod turnstile accordingly.

The tripod turnstile is a simple product. But it solves a real problem. It controls access. It prevents ticket fraud. It works outdoors. It integrates with existing systems. And it does all of this at a reasonable cost. That is why ZOJE uses it for projects like the scenic spot and amusement park ticket entrances. The installations in the images show the result. Stainless steel cabinets. Red arms. LED lights. Screens for verification. They are not fancy. They are functional. And they do the job.

For more information about the ZOJE heavy duty tripod turnstile, contact ZOJE directly. Or download the spec sheet from the website. See if the standard model fits. If not, ask about customization. ZOJE can adjust the tripod turnstile to meet specific project requirements. That is how the scenic spot and amusement park projects were completed. And that is how ZOJE approaches access control.
