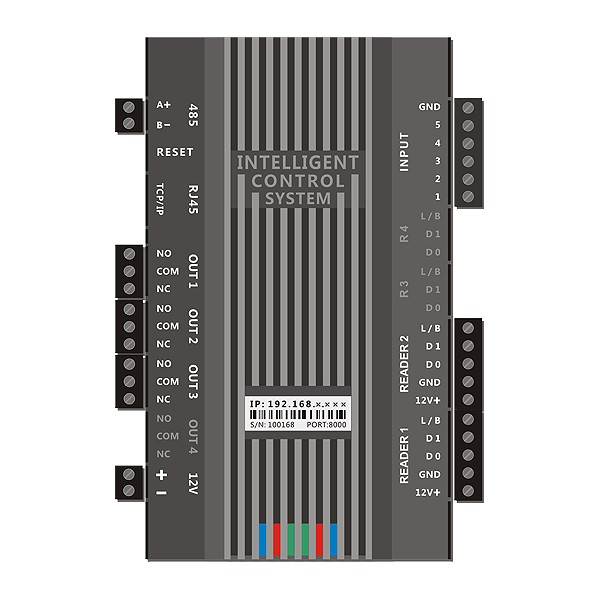

Access Controller ZOJE-AC101

● Directly integrated 10M TCP/IP communication (expandable with 485 communication) for excellent transmission performance
● Large-capacity Flash memory card stores data for 10 years without loss during power outages
● All input interfaces are optocouple - protected for enhanced system stability
● Up to 16 groups of door opening times, each with a selectable authentication method
● Multiple authentication methods: card, card + password, password, dual card, free access, timed door opening and closing, and timed alarm
● Supports remote control of door opening and closing, fire alarm, and alarms
● Supports software or web-based door locking; supports cross-zone anti-reentry; supports interlocking
● Supports alarm output for multiple events, such as invalid card, invalid time, door alarm, and door opening timeout
● Active data transmission, regardless of the number of controllers
● Supports individual card expiration date settings
● Supports mixed installation of all access control devices
● The built-in web interface features a new look for a smoother and more professional look
● Supports two WG card reader interfaces, supporting protocols such as WG26 and WG34
● 2 pushbutton inputs, 1 alarm input, 1 fire alarm input, 2 relay control outputs, and 1 relay alarm.
● 485 expansion interface directly connects to a 232 QR code conversion board, two 485 reader types, a voice board, and an LCD display.
● Supports TCP/IP, configurable in domain name and client mode; enables access to cloud servers.
● 485 supports a voice module for real-time, on-site voice broadcasting, such as "Manager Li! Welcome!" Customizable phrases are also supported.
● 485 supports 485 reader types, including those with displays.
● Supports LCD display for on-site on-screen display.
● Opening hours support card, card or password, password, card plus password, and timed modes.
● Supports direct TCP and 485 communication, enabling customized 485 device integration.
● Supports access control for detecting passthrough.
● Supports anti-reverse, card swipe time limit, and card swipe count limit. 
● Provides SDK development kit and demo code. Supports direct initiation and pull of command data from the controller, simplifying communication.
● Application software: Intelligent access control management system; managed by the same software as other networked access controllers; adds device model, channel gate, and access controller model selection in the software: "turnstile”

·Bi-camera and support moving object detection
·Support moving face tracking and exposure in strong backlighting environment
·Unique facial recognition algorithm to identify face accurately, recognition time <0.5s
·Built-in high performance CPU
·Stable Linux OS
·Cameras encoded by H.265 Main Profile, and via ONVIF and GB28181 protocol, video streams directly link NVR,etc.
·Support TF card, pictures stored continuously for 1 year and videos stored continuously for 1 month or longer(-
varying from TF card capacity)
· MTBF＞50000h
·Supports medium distance temperature measurement and high temperature alarm
·Support temperature data interface protocol docking
·Max 24,000 face capacity and 160,000 event records
·Support many interface protocols, and support SDK and HTTP protocols under Linux / Windows and other
Platforms such as TCP/IP、UDP、RTP、RTSP、RTCP、
HTTP、DNS、DDNS、DHCP、SMTP、UPNP、MQTT .
·Many hardware interface（I/O、WG26、WG34、RJ45、USB、RS485）
·8-inch multi-touch LCD screen without smear or delay
·Automatic gain and white balance naturally restored the true colors of the image
·Built-in black light sensor for video surveillance, low-light recognition is more accurate
·3D noise reduction and fog-through technology make the monitoring picture in low light more clear and delicate
· Support code stream and I frame interval setting
· Partial shielding of video area is supported
· Support ROI encoding
· Auto white balance, manual white balance
· Supports maximum exposure time setting
· Support mobile phone monitoring settings
· Support 2D noise reduction, 3D noise reduction
· Support video recording time period and upload mode setting
· Support video brightness, contrast, hue, saturation, gamma adjustment
· Support setting the maximum auto exposure time
· Supports smart face exposure and smart face enhancement settings

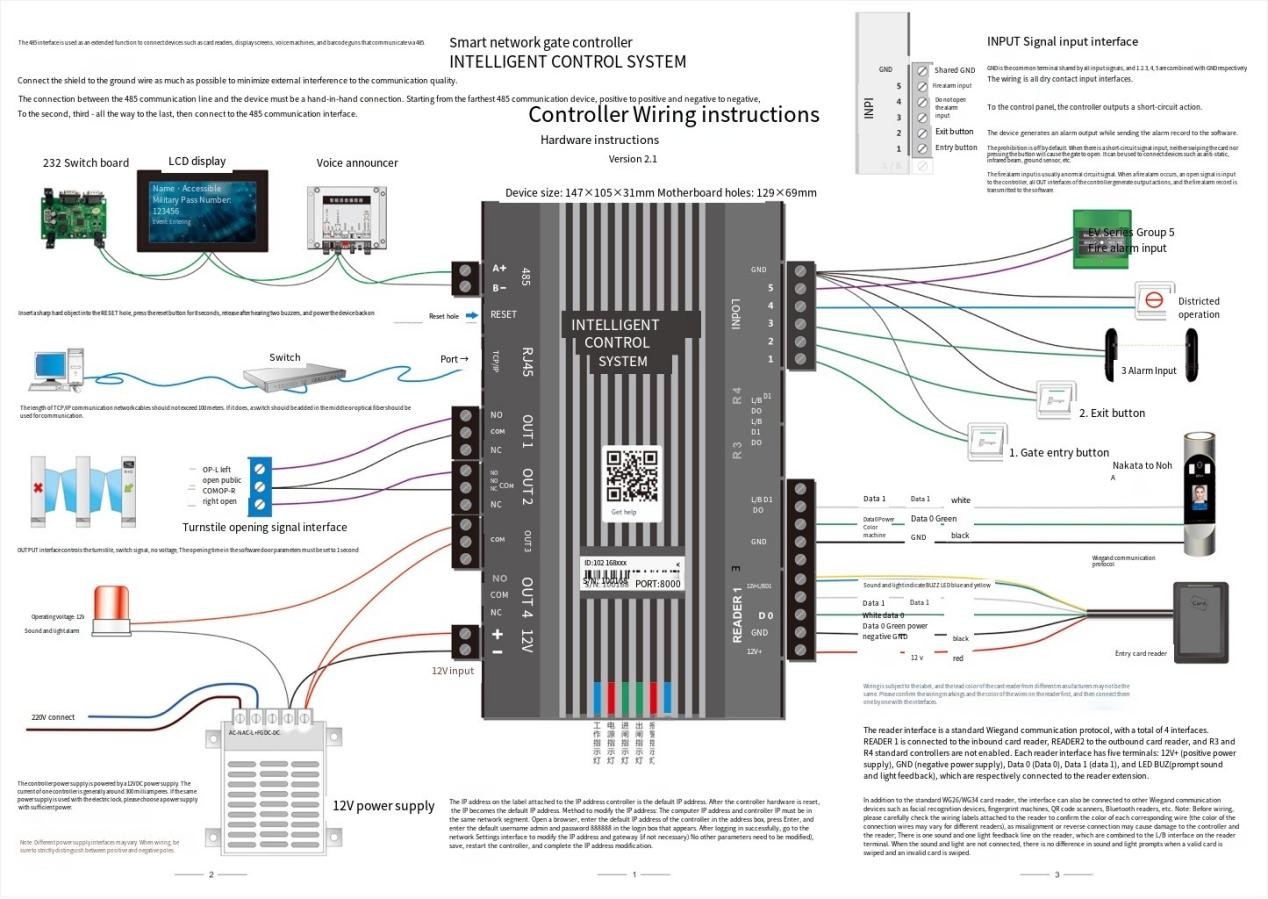

Entry Card Reader: 1
Exit Card Reader: 1
Entry Control Output: 1
Exit Control Output: 1
Alarm Output: 1
TCP/IP Communication: 1
484 Communication Extension: 1 (Poris 485 Reader, LCD, 485 Reader, LCD Display, Voice Output)
Entry Button: 1
Exit Button: 1
Stop Input: 1
Confirm Input: 1 (Short-circuit signal, card swipe does not open the gate)
Fire Alarm Input: 1 (When disconnected, a fire alarm is recorded, and the gate control output and alarm output are activated simultaneously)
