Products

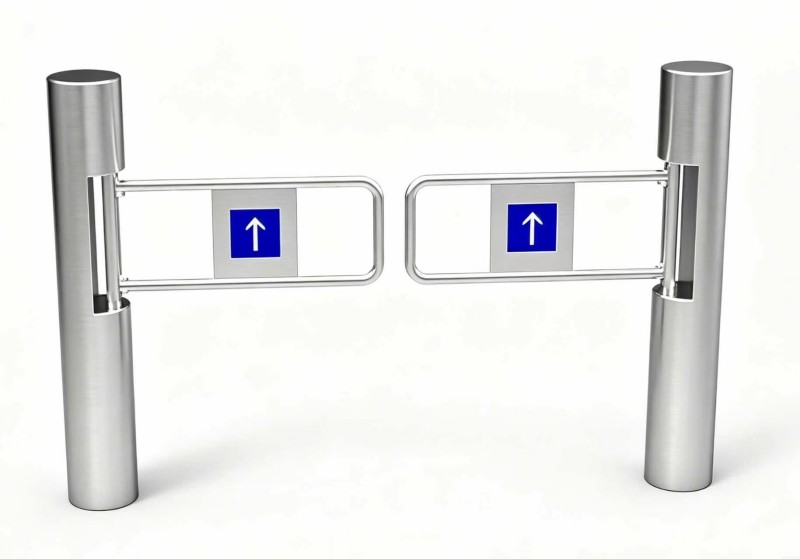

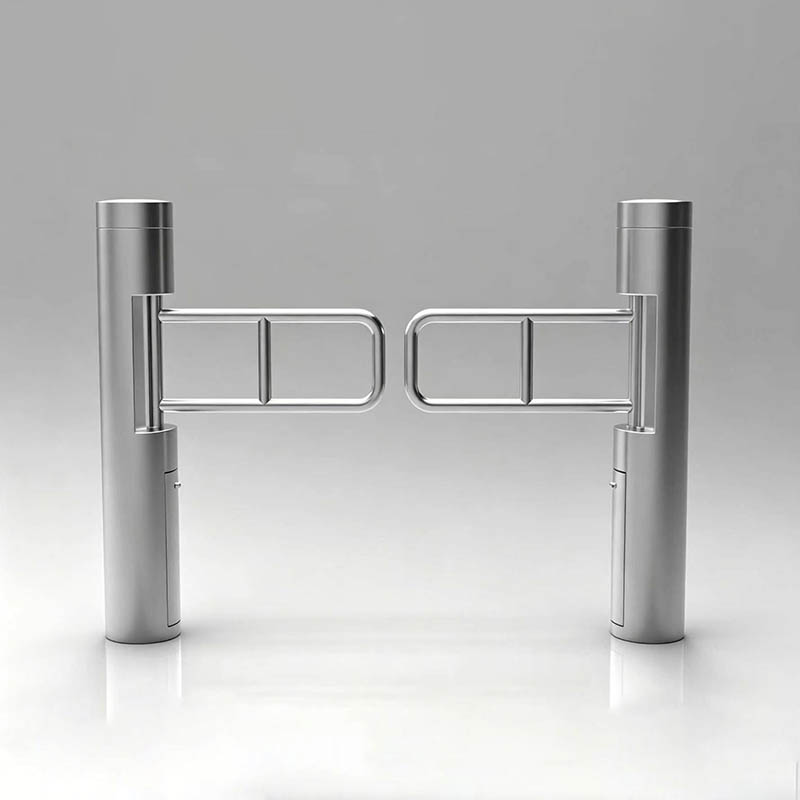

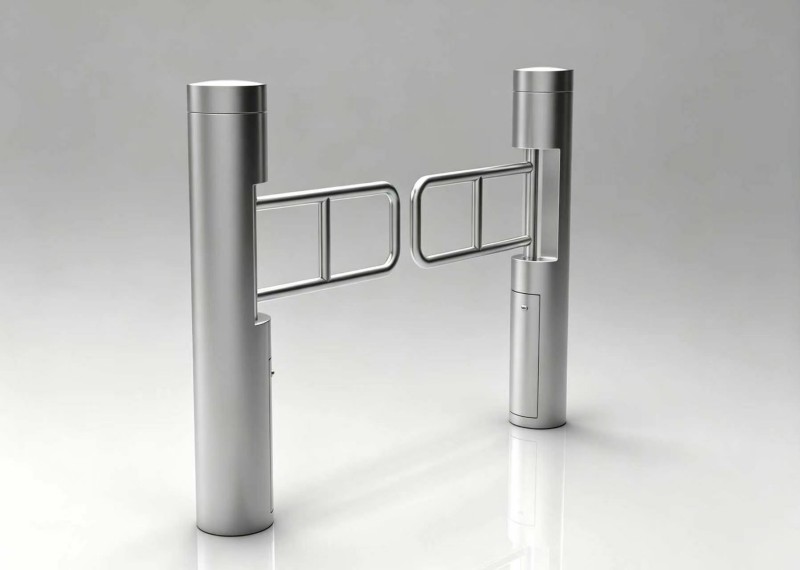

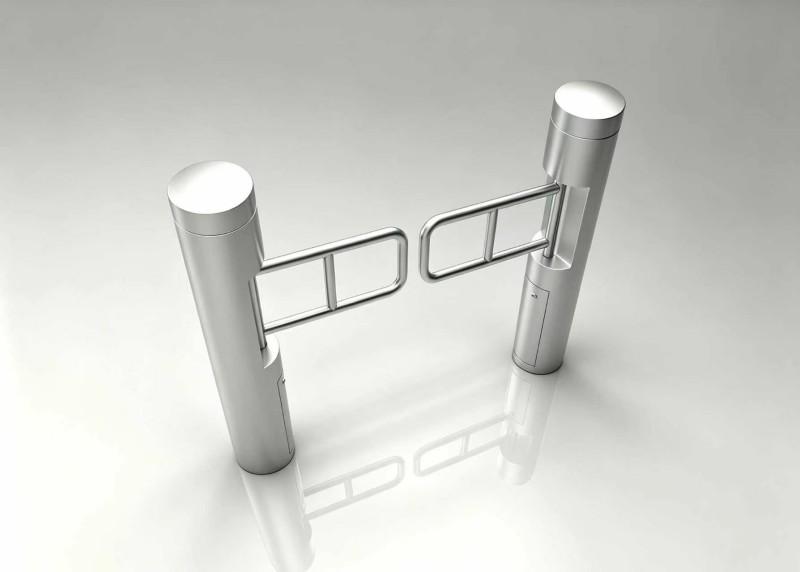

ZOJE-B307 Speed Gate
ZOJE-B307 cylindrical swing gate turnstile is vertical type, occupying much fewer space than traditional ones.One set can form a channel and the width of channel can reach 1 meter.Cylindrical swing turnstile gate usually used for disabled channel and small cart channels.It is a good choice to use ZOJE-B307 cylindrical swing gate turnstile in the place where the installation space is limited.
Model:ZOJE-PB300
Send Inquiry
Product Description
Cylindrical swing gate turnstile ZOJE-B307 standard diameter is 168mm, which can be customized according to specific project needs. Also, it can be made into different colors by painting.
As usual, this swing turnstile can work as single way or bidirectional passage.
Customers can choose 316 instead of the standard 304 stainless steel for longer lifespan serving in severe circumstances.
Customers can choose 316 instead of the standard 304 stainless steel for longer lifespan serving in severe circumstances.
Applications
Office and administrative
buildings
Ministries and government buildings
Banks and financial institutions
Airports
Metro stations
Coach terminals
Tourist destinations
Industrial buildings
Schools and universities
buildings
Ministries and government buildings
Banks and financial institutions
Airports
Metro stations
Coach terminals
Tourist destinations
Industrial buildings
Schools and universities
Features
Anti-trapping
Intrusion alarm
Tailgating alarm
Anti-destruction
Leave aisle timeout
Fail-Safe via battery back-up opening
Self-designed mechanical structure
Intrusion alarm
Tailgating alarm
Anti-destruction
Leave aisle timeout
Fail-Safe via battery back-up opening
Self-designed mechanical structure
Datasheet
| Type: | Speed Gate B307 |
| Cabinet material： | 304/316 stainless steel |
| Working Temperature： | -30°C~+70°C |
| Unlock time： | 0.2s |
| Power Supply： | AC 110V-220V, 50/60Hz |
| Operation Voltage： | DC24V,3A |
| Function： | Fail safe, anti-clamping |
| Door Material： | 304/316 stainless steel/Tempered galss |
| Drive Type： | Brushless/Servo motor |
| Direction： | Single / Bidirectional |
| Relative Humidity： | Less Than 95%, No Condensation |
| Pass Speed： | 35 person/Minute |
| Input Interface： | Dry contact/Relay Signal |
| Communication Interface | RS485/TCPIP |
| LED Indicator | Yes |
| Emergency： | Open Automatic |
| Waterproof: | IP 67 |
| Access control: | Can be integrated with any kind of access control |
Optinal
Cabinet Material: 316 stainless steel.
Door Material: Tempered glass. Smooth Motion: Motro: Brushless motor/ Servo motor
Passage Width: 900mm(for wheelchair).
Door Material: Tempered glass. Smooth Motion: Motro: Brushless motor/ Servo motor
Passage Width: 900mm(for wheelchair).
Tips
All ZOJE turnstile gates are built with self-designed mechanical structure for stable and long-time operation.
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
