ZOJE Speed Gate Keeps Foot Traffic Moving Smoothly at UAE Supermarket
ZOJE doesn’t just build speed gates and hope for the best. We wait. We ask for feedback. We want to see what happens after the crate gets opened on the other side of the world.
A couple of weeks ago, our partner in UAE sent us something we weren't expecting — a video, just a quick clip shot on someone's phone, showing our speed gate running in their commercial complex. Nothing fancy. No professional camera work. But you could see the foot traffic — steady, non-stop, people with shopping carts, families with kids, staff moving boxes. And our speed gate just kept cycling. Open, close, open, close. No hesitation. No one bumping into the glass. The guy filming didn't say much, just muttered something like "working good" in the background. That was enough for us.
That's the kind of feedback that matters. Not a formal case study with polished photos. Just raw proof that our speed gate does what we designed it to do — control pedestrian flow reliably, day in and day out, in a real-world environment with real-world chaos.

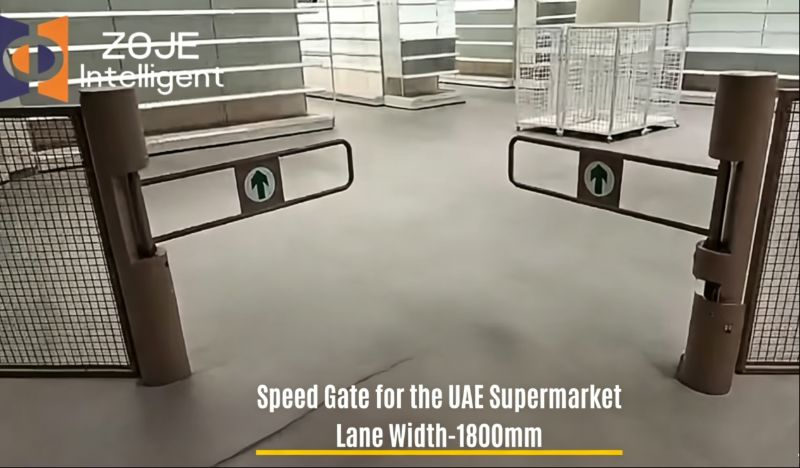

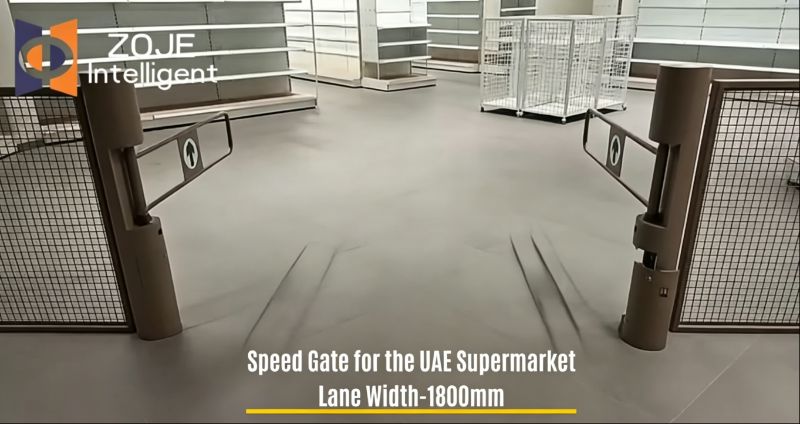

The installation itself wasn't straightforward. They had limited floor space — typical for a busy retail complex — and they needed something that didn't look like a piece of industrial equipment. Traditional turnstiles were out. Too bulky, too ugly. They wanted a sleek, cylindrical design that would blend with their modern interior. That's exactly what our speed gate delivers — vertical, space-saving, and clean. One unit forms a complete channel, and we set the passage width to about 1800mm on that project, wide enough for wheelchairs, strollers, and those oversized shopping carts that always seem to show up at the worst possible time.
Now let's talk about what actually makes this speed gate perform. The unlock time is 0.2 seconds. That number sounds tiny, but in practice, it changes everything. When someone taps their card or looks at the reader, the speed gate opens almost before they take their next step. No pause, no hesitation, no awkward waiting. They just walk. And that continuous motion is what pushes our throughput to about 35 people per minute per lane. During peak hours at their site, the facility manager told us they clocked 33 to 34 consistently for over three hours straight — no slowdown, no overheating. That's the difference between a bottleneck and a smooth entry experience.
Why doesn't it overheat? Because we don't buy generic motors off the shelf and cram them into a housing. At ZOJE, we design our own mechanical structures — the linkages, the drive modules, the gear trains. We spec everything ourselves, so we know exactly how each component behaves under sustained load. Our speed gate uses either brushless or servo motor options, and we've dialed in the thermal management so it doesn't throttle down after an hour of heavy use. That's not something you'll find in a typical datasheet, but it's the kind of detail that keeps our speed gate running long after cheaper alternatives have given up.
Material selection is another area where we refuse to cut corners. The standard cabinet is 304 stainless steel, which is perfectly fine for indoor, climate-controlled spaces. But for that UAE project, we recommended 316 stainless steel instead. It costs more — our sales team actually warned them about the budget — but their facility director didn't blink. He said, and I'm paraphrasing, "I don't want to paint it, I don't want to worry about rust near the coast, just give me the one that lasts." So we did. 316 has higher nickel and molybdenum content, which resists pitting from salt and humidity. That building is about two kilometers from the coast, so it was the right call. Our speed gate with 316 cabinet still looks brand new, and it'll stay that way for years.
Weather resistance goes beyond the cabinet. The internal electronics and drive enclosure on our speed gate are rated IP67 — fully dust-tight and protected against temporary immersion. We don't market our speed gate as submersible, but that rating means you can hose down the area, or survive a heavy sandstorm without particles getting into the controller. The operating temperature range we qualify is -30°C to +70°C. That's not just theoretical; we run samples in our thermal chamber for 500 hours at each extreme. In Saudi, they don't see the negative side, but they do see +50°C ambient during summer, and the cabinet surface can hit 70°C under direct sun. We've never had a thermal shutdown on any ZOJE speed gate in the region, and that's because we oversized the heat sinks and used industrial-grade components rated for the heat.
Safety is the other thing we don't compromise on. Every speed gate we make has multiple anti-clamping sensors along the passage — not just one pair of infrared beams. The logic inside the controller distinguishes between a person slowing down normally and someone intentionally blocking the door. If a child lingers or a bag gets caught, the speed gate stops immediately and then gently re-opens a few centimeters to release pressure. We demonstrated this to the UAE team during remote commissioning by having one of our engineers stick a rolled-up magazine into the closing gap. It bounced back every time. They were more impressed by that than by the speed, honestly.
Tailgating prevention is built into the system too. The sensor array tracks exactly where each person is in the channel. If someone tries to slip through right behind an authorized user, the speed gate detects the violation and triggers an alarm. The doors don't just close — they close with intent, stopping the tailgater before they get through. That's critical for retail environments where you can't have unauthorized people wandering into staff-only areas.
Emergency response is something we learned the hard way over the years. In a fire or power outage, the speed gate must fail open. Our standard build includes a battery backup that triggers the doors to swing fully open when mains power drops. It also accepts a dry-contact signal from the building's fire alarm panel, so even if the battery fails, the fire system can force the speed gate open. That's non-negotiable for us. Security barriers should never become death traps.
One thing that surprised the UAE team was how easy our speed gate was to integrate with their existing systems. They're running facial recognition at the entrance, tied to their customer loyalty app. Our control board supports dry contact, relay signal, RS485, and TCP/IP. Their IT department handled the integration themselves — we just provided the wiring diagrams and a remote support call. That's how we like it. ZOJE doesn't force you into a closed ecosystem. You want to use your own readers, your own software, your own ticketing platform? Go ahead. Our speed gate plays nice with all of them.
We've deployed this same speed gate platform across a wide range of environments — office buildings, government ministries, banks, airports, metro stations, schools, universities. The cylindrical design works everywhere because it's unobtrusive, it doesn't hog floor space, and it can be painted to match any color scheme. Need a wider lane? We can go up to a full meter. Need a different finish? We can do that too. The speed gate is customizable down to the smallest detail, because every project has its own quirks.
The warranty on our speed gate is two years from the date it leaves our factory. That's not just a marketing line. We stand behind what we build because we know how it's made — every weld, every circuit board, every line of code in the controller. When something does need attention, we offer 24-hour remote technical support and regular overseas visits to check in on our partners. Our Overseas Sales Manager, Ben Lee, has been to UAE multiple times this year alone, meeting with partners face-to-face, walking factory floors, and listening to what local engineers have to say about how our equipment performs in their specific environment. That's the kind of support you don't get from a brand that just drop ships boxes and disappears.
So when we saw that video from UAE— our speed gate running smoothly, handling real people in a real commercial setting — it wasn't just a nice moment. It was validation. Validation that the choices we make at ZOJE — the self-designed mechanics, the premium materials, the safety logic, the open integration — all add up to something that actually works in the field.
If you're managing a facility, designing a new building, or upgrading an existing entrance, don't settle for a speed gate that looks good on paper but falls apart under real use. Talk to us. Let our engineering team look at your traffic patterns, your space constraints, your security requirements. We'll spec the right speed gate for your needs — whether that's 304 or 316 stainless, brushless or servo motor, standard width or custom. And when it's installed and running, we'll be there to make sure it stays that way.
That's what ZOJE does. That's what our speed gate is built for. And that UAE installation? It's just one more proof point in a growing list of projects where our hardware proves itself, day after day, person after person.
