ZOJE All‑in‑One LPR Terminal for Modern Parking Access Control

Modern parking facility construction puts forward higher requirements for vehicle identification equipment, especially for compact, easy-to-install access hardware that can work reliably in complex outdoor conditions. As a professional manufacturer focusing on vehicle access solutions, ZOJE devotes continuous effort to optimizing integrated access hardware, and the core of our solution is a high-precision LPR Camera that handles license plate capture and recognition. Many real-world parking projects face narrow installation spaces beside driveways. If users deploy a separate LPR Camera, independent LED screen, voice speaker and supplementary lighting devices at the same time, on-site wiring will become complicated, construction cycles will extend, and hidden troubles of loose wiring and device damage will increase. ZOJE’s integrated terminal merges all these modules into one single cabinet, effectively solving these common pain points for system integrators, property management teams and parking operators.

Stable imaging performance forms the foundation of access control work, and every LPR Camera built into ZOJE integrated terminals goes through strict scene-adaptation testing before leaving the factory. The embedded LPR Camera carries a 1/2.8-inch starlight CMOS sensor together with a 6 mm fixed lens and intelligent ISP chipset. Such hardware configuration enables the LPR Camera to output clear picture details under strong backlight, flickering street lamp light and dim night surroundings. Under color illumination as low as 0.01 lux, the LPR Camera can still capture complete license plate features. In actual lane scenarios, the overall capture rate reaches no less than 99.99 %, while the overall license-plate recognition rate keeps above 99 %. Project builders no longer need to prepare multiple mounting brackets for the LPR Camera and auxiliary accessories, because all functional units are contained inside one slim vertical cabinet. This greatly shortens on-site installation hours and lowers the total investment of whole parking access projects.

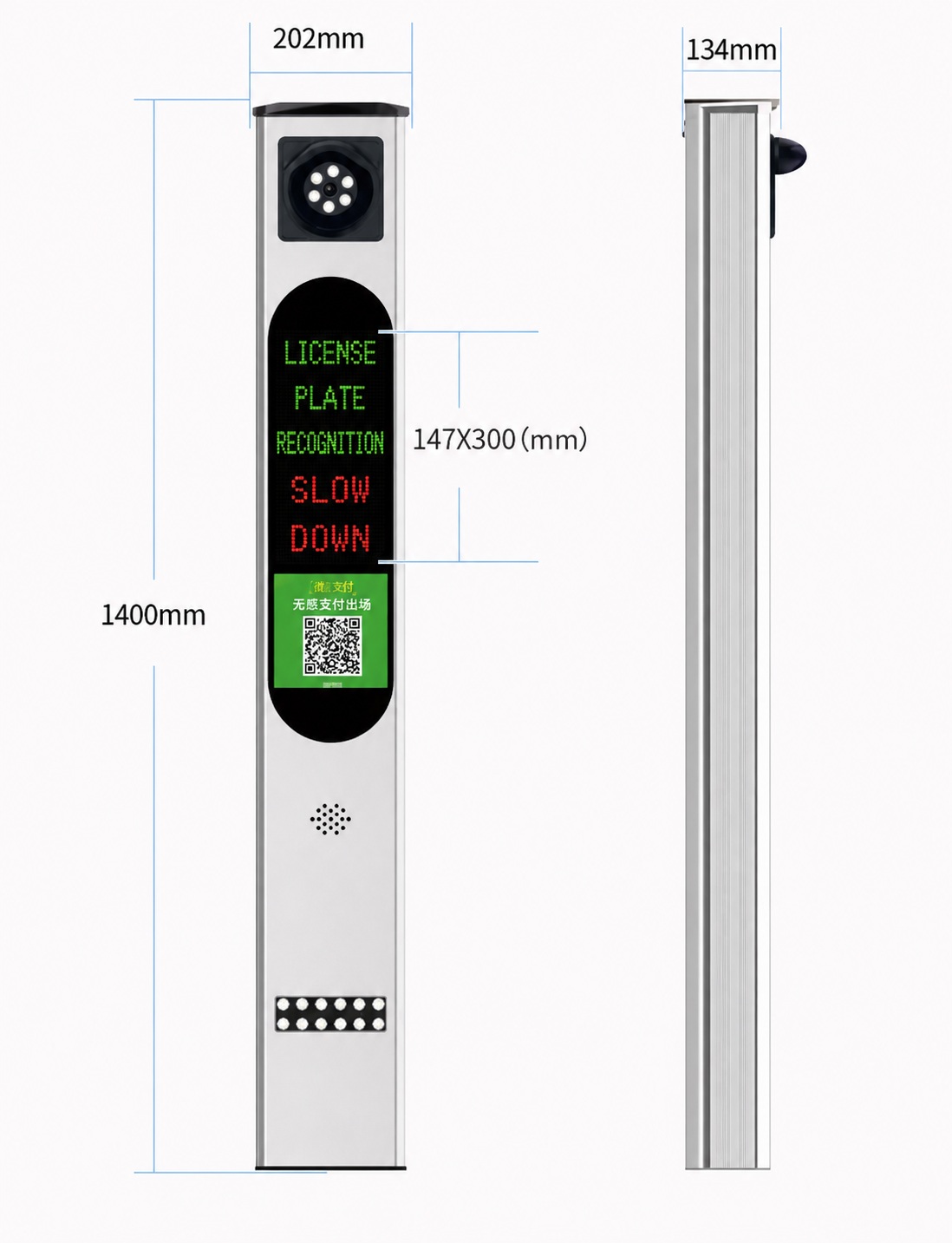

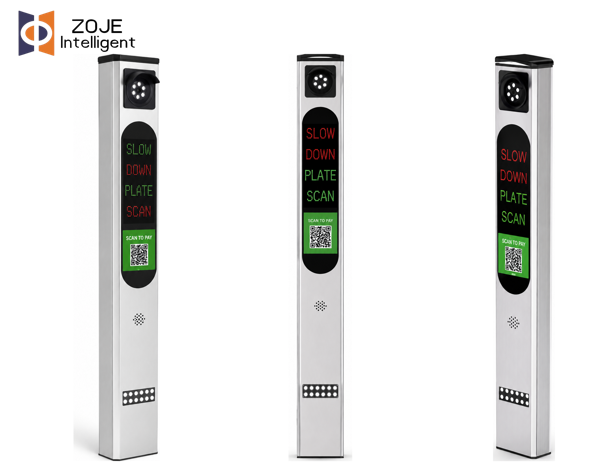

The ZOJE-LPR218 serves as our flagship all-in-one terminal powered by this mature LPR Camera. Its cabinet measures 1400 mm in height, 202 mm in width and 134 mm in depth, and the slim body adapts perfectly to narrow driveways where bulky traditional parking terminals cannot fit. The housing is built from powder-coated high-strength carbon steel, achieving IP54 enclosure protection. It can run stably in ambient temperatures ranging from 20 °C to +60 °C, and resist dust splashes and rainfall in open-air parking lots. The device accepts AC 110-220 V ±10 % input voltage, with rated power consumption below 60 W. Such power performance keeps long-term operating costs under control for commercial and residential parking sites of different scales.

Apart from core identification capability brought by the LPR Camera, ZOJE equips the terminal with complete human-vehicle interaction modules to smooth vehicle passing experience. A P4 red-green LED display module presents real-time text reminders for approaching drivers, and a built-in loudspeaker delivers clear voice guidance for entry and exit procedures. Ten integrated LED fill-lights adopt photosensitive intelligent brightness control, automatically adjusting luminous intensity according to surrounding ambient brightness. This design ensures the LPR Camera obtains sufficient and non-glare supplementary light day and night, removing the need for frequent manual parameter adjustment by maintenance staff. Built-in whitelist management and intelligent calibration functions allow administrators to quickly import vehicle information for residents, staff and authorized visiting cars, realizing fast barrier lifting for whitelisted vehicles.

Sufficient expandable interfaces are essential for docking with varied third-party parking systems, and ZOJE has fully considered integration demands during product design. The terminal is equipped with 10/100 Mbps adaptive RJ45 network port, RS485 interface, multi-channel configurable input and output ports, a USB-A port and a TF-card slot supporting up to 512 GB storage capacity. Users can also select an optional 4G module for locations without stable wired network. Rich secondary-development support helps solution providers carry out customized development. This hardware fits parking entrances and exits of shopping centers, mixed-use complexes, residential communities, office campuses, transportation hubs and industrial parks.

All hardware manufactured by ZOJE complies with ISO 9001:2015 quality management system standards. The ZOJE-LPR218 enjoys a two-year warranty calculated from factory shipment, delivering solid quality guarantee for continuous outdoor operation. When customers evaluate suitable LPR Camera hardware for parking upgrading or new-build access lanes, ZOJE’s all-in-one terminal reduces field wiring workload, maintains high-level identification accuracy, and simplifies later-period device maintenance. Whether renovating old parking access lanes or constructing brand-new vehicle passageways, our integrated unit centering on the high-performance LPR Camera delivers a practical, cost-effective solution balancing space-saving installation and steady access-control performance.
