How Does the LPR All-in-one Machine Cut Parking Operation Costs?

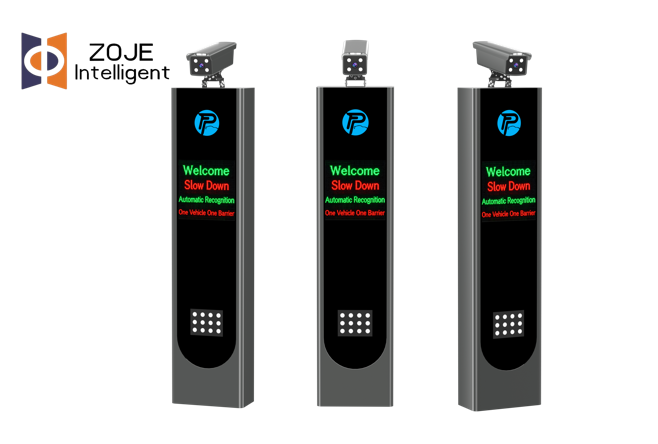

As a professional intelligent traffic equipment manufacturer, ZOJE has spent years optimizing vehicle access control hardware, and our flagship LPR All-in-one Machine LPR216 stands out as an all-in-one ANPR terminal tailored for all types of parking lots, highway monitoring and electronic police systems. This LPR All-in-one Machine integrates camera, LED display, supplementary fill light and edge computing module into one compact vertical cabinet, removing the trouble of separate device installation and wiring for project contractors. Compared with split-type LPR equipment on the market, this LPR All-in-one Machine cuts overall construction time and lowers long-term maintenance costs for property management teams.
The core competitiveness of ZOJE LPR All-in-one Machine lies in its front-end edge recognition architecture, which fundamentally solves the lag and high server cost of traditional back-end matching schemes. Equipped with a dual-core 900MHz processor and built-in CNN hardware acceleration engine of 0.5Tops computing power, the LPR All-in-one Machine completes plate capture, character recognition and white/blacklist matching locally without relying on cloud or backend computers. The whole process covers vehicle detection, image capture, license plate decoding and access permission judgment within milliseconds, supporting non-stop vehicle passage at speeds up to 40km/h. Our internal test data shows the comprehensive capture rate of this LPR All-in-one Machine reaches over 99.99%, while the overall license plate recognition accuracy hits 99%, delivering stable identification results in rainy, foggy, backlight and pitch-dark environments.
For round-the-clock outdoor deployment, ZOJE designs the LPR All-in-one Machine with full industrial-grade hardware parameters strictly following standardized specifications. The cabinet is made of high-strength carbon steel with sheet metal spraying treatment, reaching IP54 enclosure protection class to resist dust and splashing water. Its operating temperature ranges from -20°C to +60°C, and it can work under relative humidity below 95% without condensation. The rated power of the LPR All-in-one Machine is controlled within 60W, powered by AC110-220V wide voltage to adapt to unstable power supply in overseas parking projects. The overall dimension of the terminal is 1580mm (height) × 180mm (width) × 336mm (depth), excluding the external adjustable-angle camera, which fits standard road lane layouts without occupying extra space.
Imaging and supplementary lighting systems of ZOJE LPR All-in-one Machine guarantee clear plate shots in all light conditions. It adopts a 1/2.8-inch starlight-level CMOS image sensor with a maximum resolution of 1920×1080, and the lowest recognizable illuminance can drop to 0.01Lux in color mode. A standard 6mm fixed lens is pre-installed, matched with 10 LED fill light beads with total 10W power. The fill light supports intelligent light sensing adjustment, automatically changing brightness according to ambient light; at 5 meters distance, the illumination intensity stays above 50LUX to eliminate headlight glare and shadow interference. The P4 red-green dual-color LED screen on the front of the LPR All-in-one Machine scrolls text like “Welcome, Slow Down, Automatic Recognition” to remind drivers, delivering clear visual prompts day and night.
Rich expandable interfaces make ZOJE LPR All-in-one Machine highly flexible for customized projects and secondary development. Communication channels include TCP/IP and RS485, with one 10/100Mbps adaptive RJ45 network port for data transmission. It carries 4 IO input ports and 2 IO output ports to directly connect barrier gates, traffic lights and alarm devices. A USB Type-A interface is reserved for optional 4G communication modules, while a TF card slot supports up to 512G local storage, enabling fully offline independent operation without backend software. For system integrators, ZOJE opens complete development protocols of this LPR All-in-one Machine, supporting customized hardware appearance, display text, recognition algorithm parameters and docking with third-party parking management platforms.

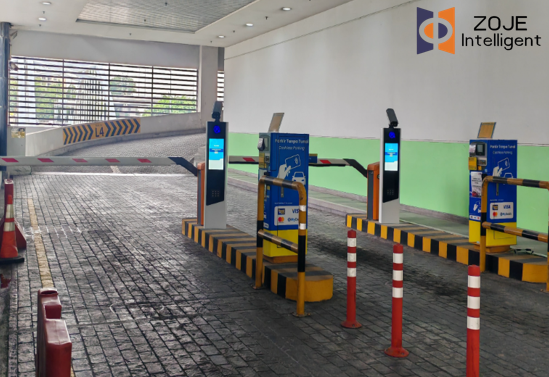

All ZOJE products pass strict quality certification before delivery, and the LPR All-in-one Machine LPR216 complies with ISO 9001:2015 quality management standards, with CE conformity certificates issued by SiCTLab. We provide a uniform 2-year factory warranty starting from the shipment date, covering hardware failure repair and technical after-sales guidance. This LPR All-in-one Machine has been widely applied in commercial parking lots, residential compound access, highway flow monitoring and electronic police capture systems across global markets.
For parking operators seeking to reduce labor expenditure and backend software investment, ZOJE LPR All-in-one Machine brings tangible long-term benefits. Its offline edge processing removes expensive server deployment fees, integrated design cuts installation labor, and durable carbon steel cabinet reduces equipment replacement frequency. As a reliable one-stop LPR solution supplier, ZOJE keeps upgrading the LPR All-in-one Machine series to meet diverse global traffic management demands, combining high recognition performance, weatherproof durability and flexible customization in one cost-efficient terminal.
