​Meet the ZOJE Road Blocker That Really Knows How to Stop Trouble

A lot goes into keeping sensitive areas safe. For military bases, prisons, warehouses, checkpoints, and ports, vehicle access control is not something to take lightly. ZOJE has engineered a solution that truly makes a difference: the ZOJE‑RD3000 Road blocker.

Ordinary tyre killers or flimsy barriers often fail when a real threat appears. But when protecting critical locations, a serious barrier is required. That is exactly why ZOJE designed the RD3000. This ZOJE Road blocker is built to stop unauthorised vehicles from forcing their way in – no compromises. It is practical, reliable, and secure. Many defence and logistics sites around the world have already deployed this ZOJE Road blocker.

What Exactly Does a ZOJE Road Blocker Do?

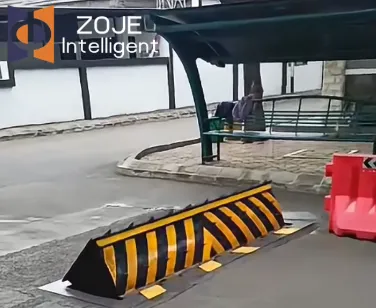

Let’s put it in plain language. A Road blocker is a heavy‑duty, hydraulically operated barrier that sits flush with the ground and rises when needed. The ZOJE‑RD3000 is embedded directly into the driveway or gate area. When a guard activates it, the blocker rises to block vehicles. When not needed, it lowers back into the housing, leaving the road completely flat. Simple in concept, but the engineering behind it is highly advanced.

This ZOJE Road blocker is mainly used where forced vehicle entry would be catastrophic. Think army checkpoints, prison entry points, customs areas, port facilities, and high‑value warehouses. The moment an unauthorised vehicle tries to rush through, the ZOJE‑RD3000 stops it dead – without destroying the vehicle or hurting the occupants, because the device is designed for controlled, safe stopping.

Three Main Parts That Make Up the ZOJE‑RD3000 Road Blocker

ZOJE keeps things transparent. Here is exactly what goes into this ZOJE Road blocker system. It comes in three major components.

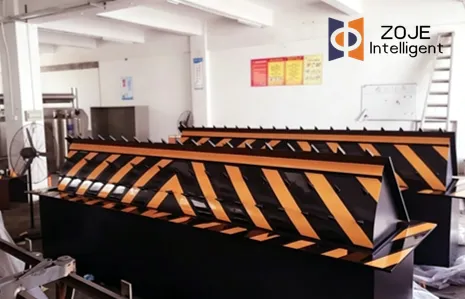

First, the blocker machine itself – that is the visible part. It consists of the lifting body (or turning swivel, depending on the model), the housing base, and optional anti‑collision spikes if a customer wants extra deterrence. ZOJE uses 16mm international standard A3 carbon steel plus heavy channel steel, all welded together. This gives the ZOJE Road blocker incredible load‑bearing strength and anti‑ramming capability. Moreover, no electrical wires or devices are placed inside the base housing. That makes the ZOJE‑RD3000 extremely safe to operate, even in wet or harsh conditions.

Second, the hydraulic power station – the muscle behind the movement. This includes an oil tank, a manual oil pump (very useful during power cuts), a full set of hydraulic solenoid valves, a high‑power motor, oil pump, cylinders, pressure gauge, and high‑pressure hoses. This station sits at the side of the Road blocker and provides all the power for lifting and lowering. With a ZOJE Road blocker, up and down speeds can be adjusted by controlling the valves. And if the electricity fails, manual operation is possible. The blocker can be lowered or raised by hand. That is real peace of mind.

Third, the automatic electronic control system – the brain. It includes a PLC control board, a leakage switch, long‑life contactors that do not expose noise, and precise time‑delay devices. Why the time delay? To prevent the oil cylinder from slamming hard at the end of the stroke. That protects the mechanical parts and makes this ZOJE Road blocker last much longer.

How to Control the ZOJE‑RD3000 Road Blocker

Control flexibility is built in for different duty scenarios. The ZOJE‑RD3000 comes with an automatic controller that includes a fixed control box, a remote controller, and manual buttons. Personnel on duty can choose whichever method fits their site. For routine operation, the remote is super convenient. For high‑security checkpoints, the wired control box gives extra reliability. Manual buttons are always there as a backup. That is the ZOJE approach – no single point of failure.

Technical Details – Friendly and Clear

Here are the key numbers for the ZOJE‑RD3000 Road blocker, with plain‑language explanations.

a) Standard model – ZOJE‑RD3000.

b) Control system – Electric hydraulic control. Smooth and powerful.

c) Voltage – 380V for the main system; the controller runs on safe 24V.

d) System power – 3.7kW or 5.5kW depending on configuration.

e) Passing pressure rating – This ZOJE Road blocker can handle a 120‑ton container truck rolling over it when lowered. Yes, 120 tons.

f) Rising / dropping time – Adjustable from 1.5 to 5 seconds, preset at the factory.

g) Material – A3 steel, 12mm thickness, with spray‑applied rust primer. No shortcuts.

h) Weight – 1.5 tons for a 3‑meter wide unit.

i) Control type – RFID card, remote control, or manual buttons.

j) Power‑off behaviour – Manual open or close. No electricity needed.

k) Working environment – Indoor or outdoor. This ZOJE Road blocker works from -30°C up to +70°C. Humidity up to 95% without condensation? No problem.

l) LED indicator – Optional on top of the blocker for better nighttime visibility.

m) IP protection level – IP68. Fully dust‑tight and submersible.

Why This ZOJE Road Blocker Stands Out

Cheaper barriers exist. But a Road blocker is a security investment, not an expense. Buying a ZOJE‑RD3000 means getting decades of engineering experience. Every ZOJE Road blocker is designed with real‑world conditions in mind. ZOJE has seen how vehicles try to ram through and what extreme weather does to lesser products. That is why the steel is thick, the welds are strong, and the hydraulic components come from trusted suppliers.

Safety is not just about stopping vehicles – it is also about protecting people. Because no electrical wiring exists inside the base housing of this ZOJE Road blocker, there is zero risk of shock or spark. The built‑in time delay prevents sudden stops that could damage the hydraulic cylinder. That means less maintenance and fewer surprises for the maintenance team.

Where the ZOJE‑RD3000 Is Used

This ZOJE Road blocker has been installed at military compounds where entry control is a matter of national security. Prisons use the RD3000 to prevent escape or smuggling vehicles. Customs checkpoints rely on it to inspect trucks without fear of a run‑through. Warehouses storing expensive goods trust ZOJE to keep out unauthorised trucks. Ports, with their constant flow of heavy cargo vehicles, appreciate that this Road blocker can take the weight of a fully loaded container truck when lowered.

One customer said: “Before ZOJE, we tried three different brands. None survived the winter salt and rain. The ZOJE‑RD3000 is still going strong after two years.” That is the kind of feedback ZOJE works for.

Installation and Maintenance – Straightforward

Installing a ZOJE Road blocker requires embedding it into the ground – that is how it achieves the flush‑to‑road profile. ZOJE provides detailed drawings and support. The hydraulic station sits at the roadside, connected by pipes. Once installed, daily maintenance is minimal. Just check the hydraulic oil level occasionally and keep the control box dry. Because high‑grade seals and IP68 protection are used, time will not be spent cleaning mud or water out of the mechanism.

If a spare part is ever needed, ZOJE’s global support network can deliver it quickly. Manuals are written in plain English – no confusing jargon.

To Sum It Up

If a facility cannot afford a vehicle breach, the ZOJE‑RD3000 Road blocker is one of the smartest investments available. It is tough, reliable, safe, and easy to operate. From extreme cold to scorching heat, from dry deserts to rainy coasts, this ZOJE Road blocker keeps doing its job. With manual backup, there is never a moment of exposure during a power outage.

ZOJE stands behind every Road blocker shipped. To learn more about the ZOJE‑RD3000 or see a live demo, reaching out to the ZOJE team is easy. They will help choose the right configuration – with or without LED indicators, with or without anti‑collision spikes. Because security needs are unique, and the right ZOJE Road blocker should match them exactly.
