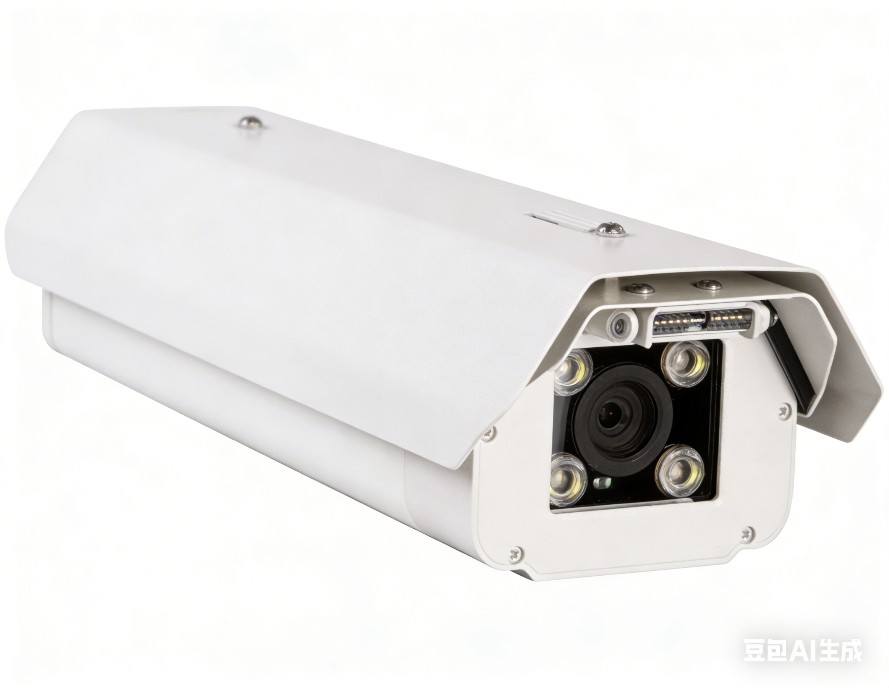

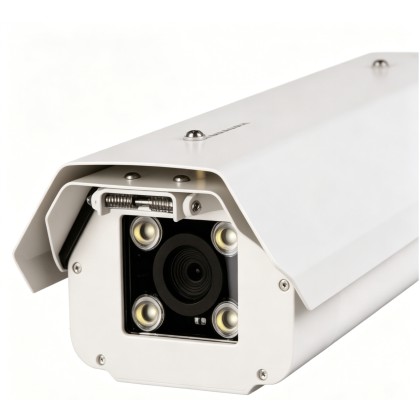

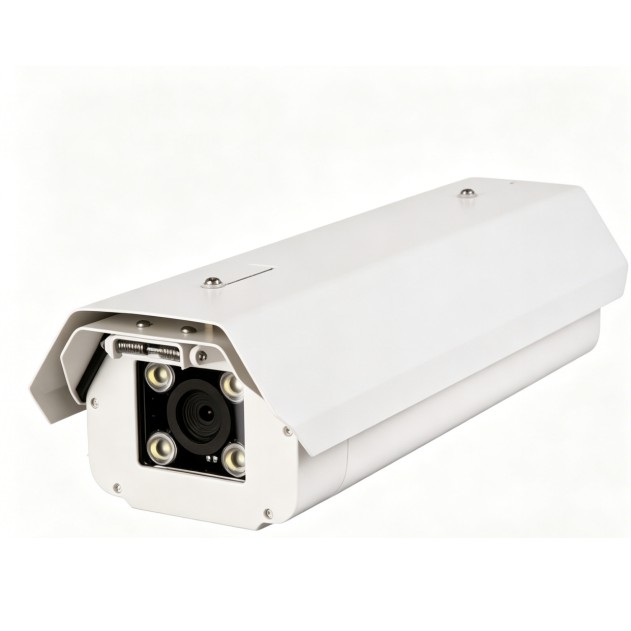

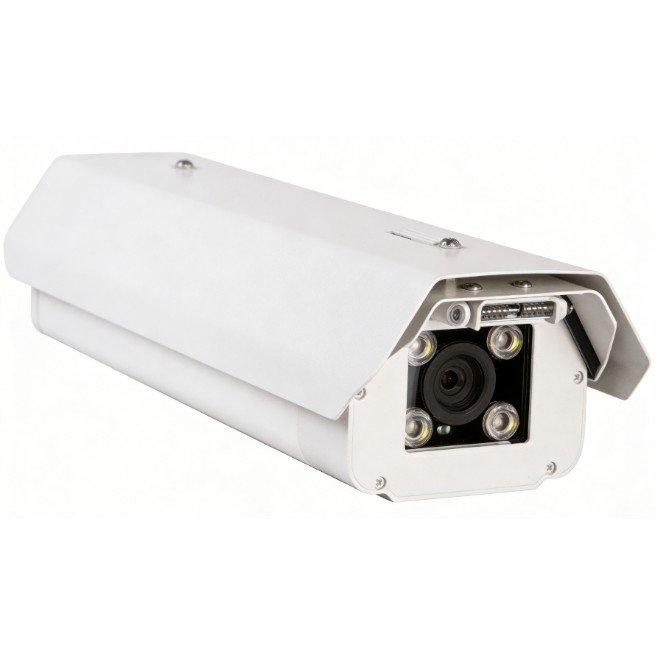

LPR Camera - LPR 100

LPR 100 delivers 95%+ all-weather recognition, identifying 150+ car logos and 1,500+ models for automated entry, exit, and differential pricing. With starlight imaging and cloud management, it ensures smooth, labor-saving operation at parking lots, highways, and checkpoints—reducing hassle, saving time, and upgrading traffic efficiency reliably.

Send Inquiry

Product Description

Applications

Parking Lots
Highways
Electronic Police Systems
Road Monitoring Systems

Features

None-stop entrance and exit.
None-maintain, Lower-troubleshoot,Save labor cost.
Drive smooth-Save time, improve traffic efficiency.
Excellent hardware architecture and stable license plate recognition algorithm.
2 Megapixel starlight-level imaging with a dual-core processor for CNN acceleration.
Support Cloud management.

Datasheet

Hardware
Name	HD all-in-one exit/entrance license plate camera
Model No.:	LPR-100
Processor	Hisilicon, specialized license plate recognition chip
Sensor type	1/3" Progressive Scan CMOS
Minimum illumination	0.001 Lux
Electronic shutter	1/25 to 1/30,000 seconds
Lens	CS interface, fixed iris, 6mm prime lens/ 2.8-12mm electric zoom lens, optional
Fill light	4 high-power LED white lights
Performance
Plate recognition rate	95%
Recognizable license plates	Southeast Asia: Malaysia, Indonesia, Vietnam, Singapore，North America: Canada
Triggering mode	Video triggering, coil trigger, vehicle capturing rate≥99%
Image output	1080P（1920×1080），960P（1280x960），720P（1280x720），D1（704x576），CIF（352x288）
Picture output	2 mega-pixel JPEG
Ultra-wide dynamics	120dB
Video compression format	H.264 High Profile , Main Profile, Baseline , MJPEG
Electric and interface parameters
Network interfaces	10/100M network adaptive, RJ45 adaptor
IO interface	2-route input/2-route output 3.5mm connecting terminals
Audio interface	1-Route input/1-route output
SD card	Support SD2.0 standard Micro SD(TF) card with a maximum capacity of 32G
Serial interfaces	RS485
Power supply	AC220V
Power consumption	≤7.5W
Working temperature	-35℃~+70℃
Protection grade	IP65
Surging overvoltage protection	4KV

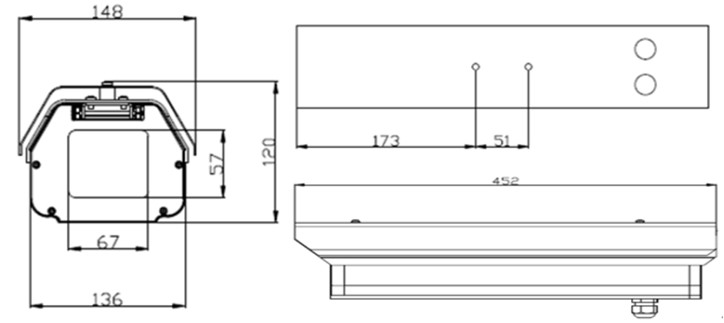

Size (mm)	452(L)148 (W)120(H)
Weight	2.75kg

Warranty

The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.

Quality Assurance

All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.
