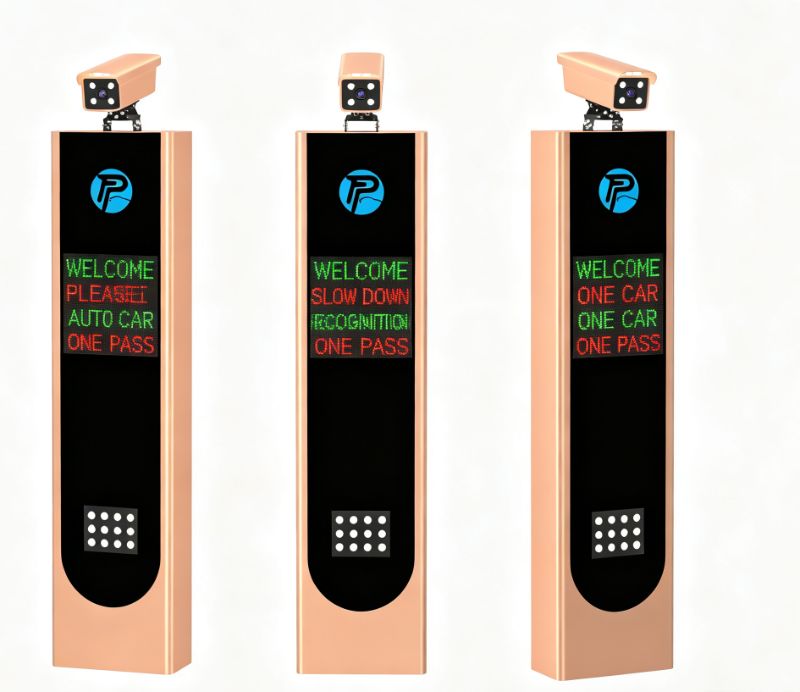

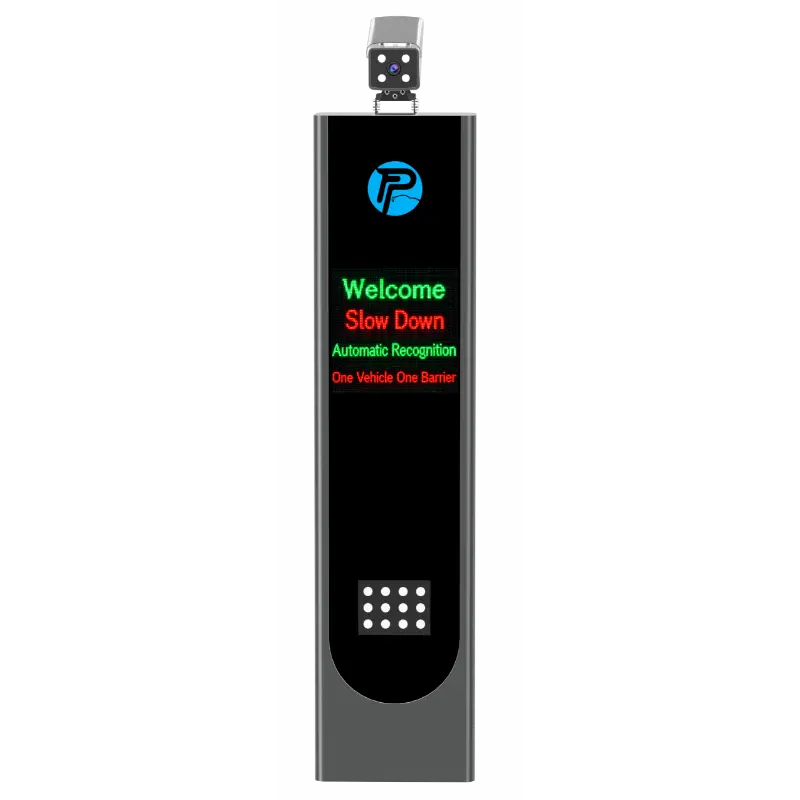

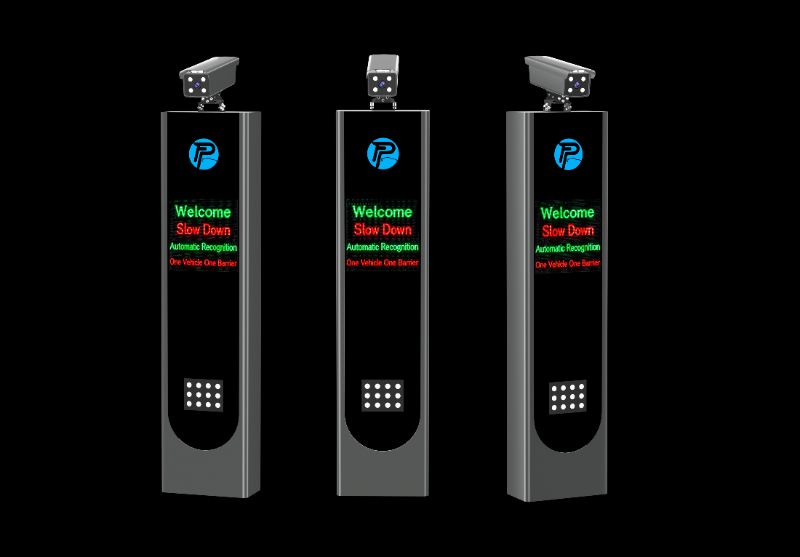

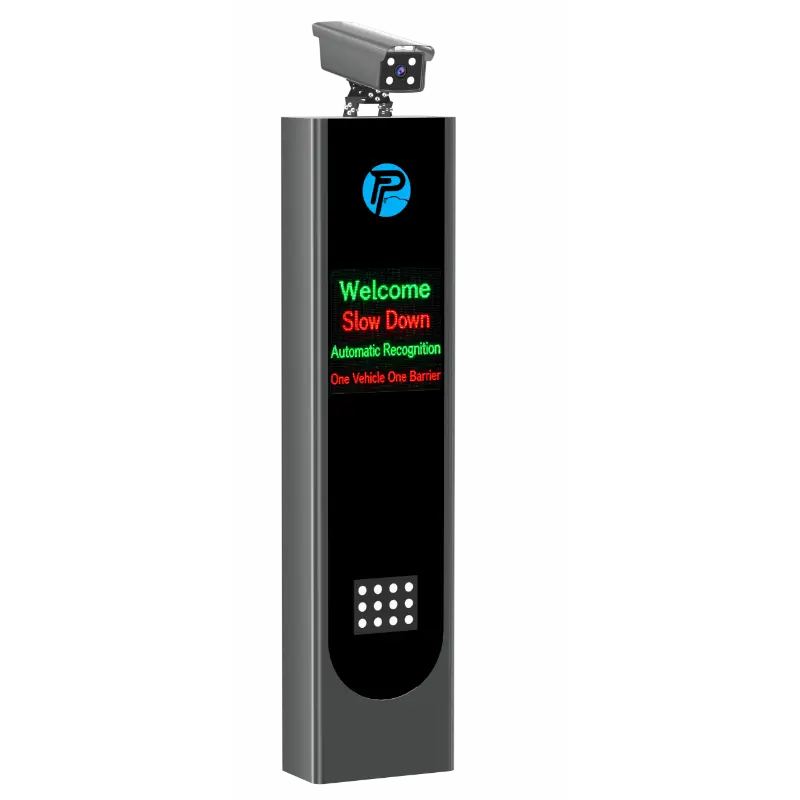

LPR All-in-one Machnie - LPR 216
Meet ZOJE-LPR 216, an all-in-one ANPR terminal exclusively built for all types of parking lots. Featuring 99% license plate recognition accuracy, 2MP starlight CMOS and CNN dual-core acceleration, it works flawlessly in rain, fog and extreme light, supporting 40km/h non-stop vehicle pass and stable offline operation. Crafted with IP54 high-strength carbon steel, it slashes labor & backend software costs, supports full customization and secondary development, backed by a 2-year factory warranty for effortless, efficient parking management.
Send Inquiry
Product Description
Applications
Parking Lots
Highways
Electronic Police Systems
Road Monitoring Systems
Features
High-precision all-weather plate recognition, support non-stop vehicle passing up to 40km/h.
Offline independent operation, no costly backend software required.
Starlight 2MP sensor + auto LED fill light.
Durable IP54 carbon steel housing with starlight-level 2MP imaging
Fully customizable hardware & software, complete secondary development support.
Datasheet
|
Model： LPR all-in-one machine – LPR216 |
|
|
Operating Voltage: |
AC110-220V±10% |
|
Working Temperature: |
-20°C~+60°C |
|
Relative Humidity: |
≤95% without condensation (at room temperature) |
|
Rated Power: |
≤60W |
|
Communication Method: |
TCP/IP、RS485 |
|
Display Type: |
P4 Red-Above-Green LED Module |
|
Enclosure Protection Class: |
IP54 |
|
Material&Craftsmanship: |
High-strength carbon steel, sheet metal spraying |
|
Dimensions: |
1580*180*336mm (Height * Width * Depth, excluding external camera) |
|
Camera Parameters |
|
|
CPU: |
dual-core 900MHz processor+CNN hardware acceleration engine(0.5Tops) |
|
Image Sensor: |
1/2.8" starlight-level CMOS |
|
Max Resolution: |
1920(H)×1080(V) |
|
Lowest Illumination: |
0.01Lux (Color) |
|
ISP: |
intelligent ISP,scene-adaptive |
|
Data Output: |
H265\H264\MJPEG\intelligent detection structured data output |
|
Standard Confifiguration: |
Standard 6mm prime lens |
|
Comprehensive capturingrecognition rate: |
Comprehensive capturing rate≥99.99%; comprehensiverecognition rate≥99% |
|
License Plate RecognitionFunction: |
White list of license plates, intelligent calibration |
|
Network Interface: |
1-channel 10/100Mbps adaptive RJ45 |
|
Other Interfaces: |
IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
|
USB: |
1 USB Type-A interface (optional 4G module) |
|
TF Card Slot: |
1l TF card slot, supporting 512G at maximum) |
|
Service: |
Basic services, supporting various types of secondary development |
|
Working temperature |
-20℃~+60℃ |
|
Fill Light Parameters |
|
|
Number of LED Beads: |
10 pieces |
|
Maximum Power: |
10W |
|
Fill Light Control: |
Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
|
Fill Light Distance: |
Illuminance greater than 50LUX at a distance of 5 meters |
|
Adjustment Angle: |
Support |
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
Quality Assurance
All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.
Technology

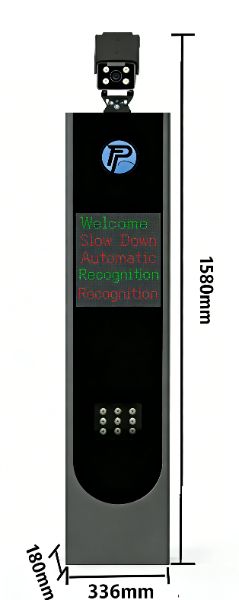

Dimensional drawing (mm)
