LPR All-in-one Machnie - LPR 215
The LPR All-in-one Machnie - LPR 215 is a self-contained ANPR powerhouse delivering 99% recognition accuracy and over 99.99% capture rates via its dual-core CNN-accelerated processor and starlight 2MP sensor. All processing occurs on-device, ensuring millisecond responses and full GDPR/CCPA compliance without cloud reliance. Its IP54-rated steel housing withstands -20°C to 60°C, while intelligent fill light guarantees clarity day or night. With TCP/IP, RS485, optional 4G, and open SDK, it seamlessly integrates into parking lots, highways, or surveillance networks. Facility managers gain lower maintenance, smoother traffic, and substantial labor savings. ZOJE includes a two-year warranty for lasting peace of mind..
Send Inquiry
Product Description
Applications
Parking Lots
Highways
Electronic Police Systems
Road Monitoring Systems
Features
99% recognition accuracy, ≥99.99% capture rate.
On‑device processing – no cloud, GDPR/CCPA compliant.
Starlight 2MP sensor + auto LED fill light.
‑20°C~60°C operation, IP54, steel housing.
TCP/IP, RS485, optional 4G, SDK for easy integration.
Datasheet
|
Model： LPR all-in-one machine – LPR215 |
|
|
Operating Voltage: |
AC110-220V±10% |
|
Working Temperature: |
-20°C~+60°C |
|
Relative Humidity: |
≤95% without condensation (at room temperature) |
|
Rated Power: |
≤60W |
|
Communication Method: |
TCP/IP、RS485 |
|
Display Type: |
P4 Red-Above-Green LED Module |
|
Enclosure Protection Class: |
IP54 |
|
Material&Craftsmanship: |
High-strength carbon steel, sheet metal spraying |
|
Dimensions: |
1380*120*248mm (Height * Width * Depth, excluding external camera) |
|
Camera Parameters |
|
|
CPU: |
dual-core 900MHz processor+CNN hardware acceleration engine(0.5Tops) |
|
Image Sensor: |
1/2.8" starlight-level CMOS |
|
Max Resolution: |
1920(H)×1080(V) |
|
Lowest Illumination: |
0.01Lux (Color) |
|
ISP: |
intelligent ISP,scene-adaptive |
|
Data Output: |
H265\H264\MJPEG\intelligent detection structured data output |
|
Standard Confifiguration: |
Standard 6mm prime lens |
|
Comprehensive capturingrecognition rate: |
Comprehensive capturing rate≥99.99%; comprehensiverecognition rate≥99% |
|
License Plate RecognitionFunction: |
White list of license plates, intelligent calibration |
|
Network Interface: |
1-channel 10/100Mbps adaptive RJ45 |
|
Other Interfaces: |
IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
|
USB: |
1 USB Type-A interface (optional 4G module) |
|
TF Card Slot: |
1l TF card slot, supporting 512G at maximum) |
|
Service: |
Basic services, supporting various types of secondary development |
|
Working temperature |
-20℃~+60℃ |
|
Fill Light Parameters |
|
|
Number of LED Beads: |
10 pieces |
|
Maximum Power: |
10W |
|
Fill Light Control: |
Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
|
Fill Light Distance: |
Illuminance greater than 50LUX at a distance of 5 meters |
|
Adjustment Angle: |
Support |
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
Quality Assurance
All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.
Technology

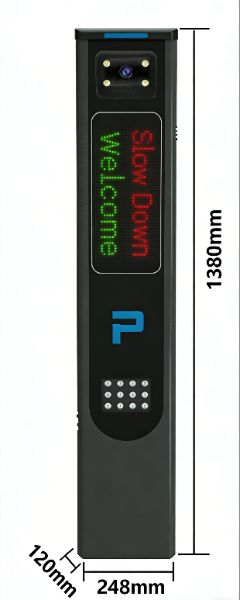

Dimensional drawing (mm)
