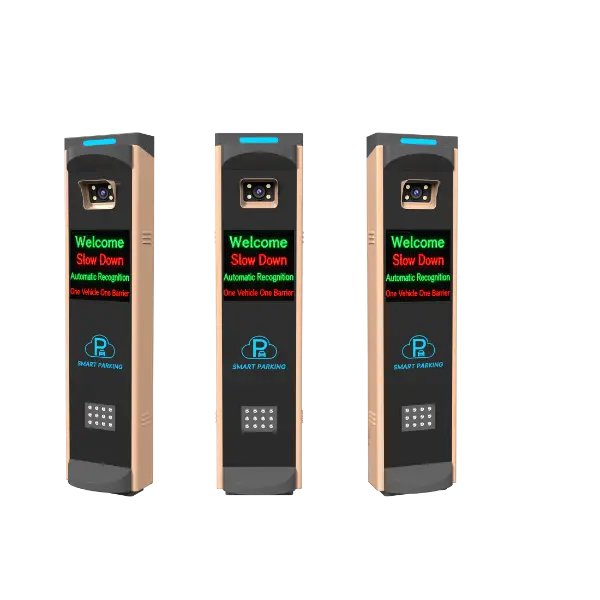

LPR All-in-one Machnie - LPR 210
The ZOJE-LPR210 is an all-in-one Automatic Number Plate Recognition (ANPR) device designed specifically for system integrators and infrastructure providers. Delivering a 99% recognition accuracy rate and a 99.99% overall capture rate, it maintains exceptional performance even in extreme conditions such as heavy rain, dense fog, intense light, and darkness.
Send Inquiry
Product Description
From the relentless downpour to the glare of high noon, the ZOJE-LPR210 stands as the unshakable sentinel of automated license plate recognition, delivering a remarkable 99% accuracy that never wavers. Engineered for system integrators and infrastructure providers, this all-in-one ANPR machine processes everything locally on its dual-core CNN-accelerated processor, ensuring split-second responses even when network connections falter. Its starlight-level 2MP sensor and intelligent fill light pierce through fog, rain, and darkness, while the rugged IP54-rated housing withstands extreme temperatures from -20℃ to +60℃. Parking facilities, highways, and electronic police systems gain effortless efficiency with zero-stop entry and exit, slashing labor costs and smoothing traffic flow. With comprehensive SDK support, white-list calibration, and cloud management readiness, the LPR210 adapts precisely to your evolving needs—not as a rigid tool, but as a future-proof partner that turns every captured plate into actionable intelligence, backed by a two-year warranty for absolute peace of mind. Choose ZOJE, and let reliability drive your operations forward.
Applications

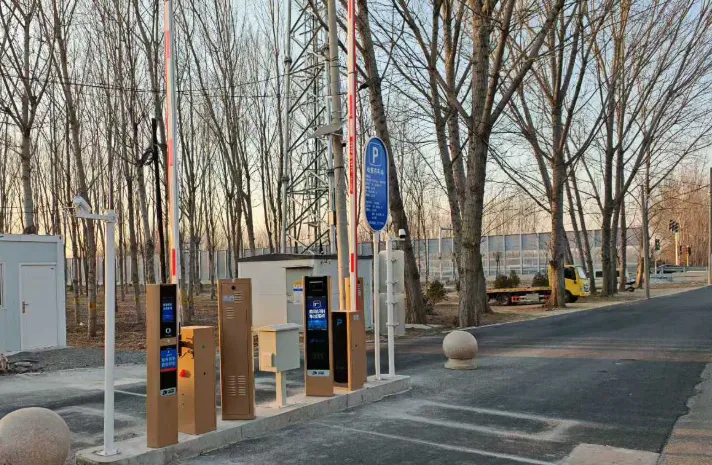

Parking Lots
Highways
Electronic Police Systems
Road Monitoring Systems
Features
Exceptional Accuracy – Comprehensive capture rate ≥99.99% and recognition rate ≥99%, performing reliably in rain, fog, and harsh lighting.
On‑Device Processing – Dual‑core 900MHz CPU with CNN acceleration (0.5 Tops) enables real‑time local analysis, unaffected by network interruptions.
All‑Weather Vision – Starlight‑grade 1/2.8" CMOS sensor, smart ISP, and 10 auto‑dimmable LEDs ensure clear imaging day and night, even in low visibility.
Flexible Integration – Supports TCP/IP, RS485, USB, TF card (up to 512GB), plus white‑list calibration, cloud management, and full SDK for easy adaptation to parking, highways, and e‑police systems.
Datasheet
|
Model： LPR all-in-one machine – LPR210 |
|
|
Operating Voltage: |
AC110-220V±10% |
|
Working Temperature: |
-20°C~+60°C |
|
Relative Humidity: |
≤95% without condensation (at room temperature) |
|
Rated Power: |
≤60W |
|
Communication Method: |
TCP/IP、RS485 |
|
Display Type: |
P4 Red-Above-Green LED Module |
|
Enclosure Protection Class: |
IP54 |
|
Material&Craftsmanship: |
High-strength carbon steel, sheet metal spraying |
|
Dimensions: |
1400*336*180mm (Height * Width * Depth, excluding external camera) |
|
Camera Parameters |
|
|
CPU: |
dual-core 900MHz processor+CNN hardware acceleration engine(0.5Tops) |
|
Image Sensor: |
1/2.8" starlight-level CMOS |
|
Max Resolution: |
1920(H)×1080(V) |
|
Lowest Illumination: |
0.01Lux (Color) |
|
ISP: |
intelligent ISP,scene-adaptive |
|
Data Output: |
H265\H264\MJPEG\intelligent detection structured data output |
|
Standard Confifiguration: |
Standard 6mm prime lens |
|
Comprehensive capturingrecognition rate: |
Comprehensive capturing rate≥99.99%; comprehensiverecognition rate≥99% |
|
License Plate RecognitionFunction: |
White list of license plates, intelligent calibration |
|
Network Interface: |
1-channel 10/100Mbps adaptive RJ45 |
|
Other Interfaces: |
IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
|
USB: |
1 USB Type-A interface (optional 4G module) |
|
TF Card Slot: |
1l TF card slot, supporting 512G at maximum) |
|
Service: |
Basic services, supporting various types of secondary development |
|
Working temperature |
-20℃~+60℃ |
|
Fill Light Parameters |
|
|
Number of LED Beads: |
10 pieces |
|
Maximum Power: |
10W |
|
Fill Light Control: |
Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
|
Fill Light Distance: |
Illuminance greater than 50LUX at a distance of 5 meters |
|
Adjustment Angle: |
Support |
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
Quality Assurance
All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.
Technology

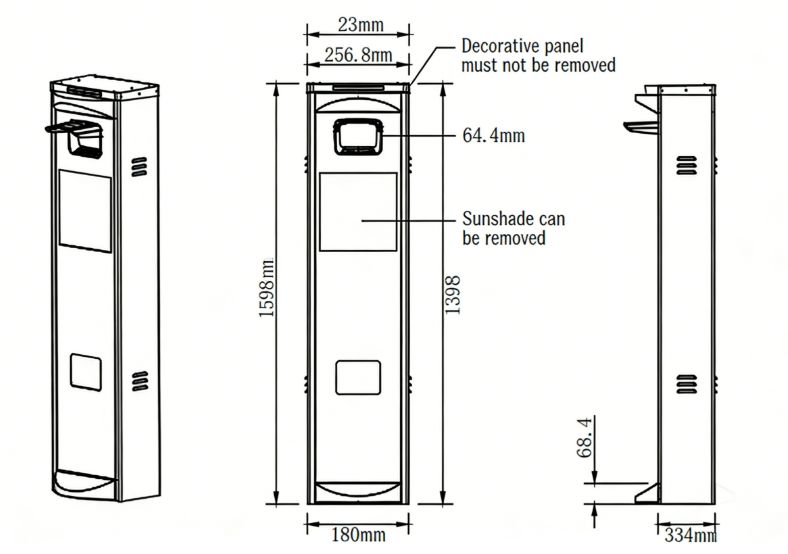

Dimensional drawing (mm)
