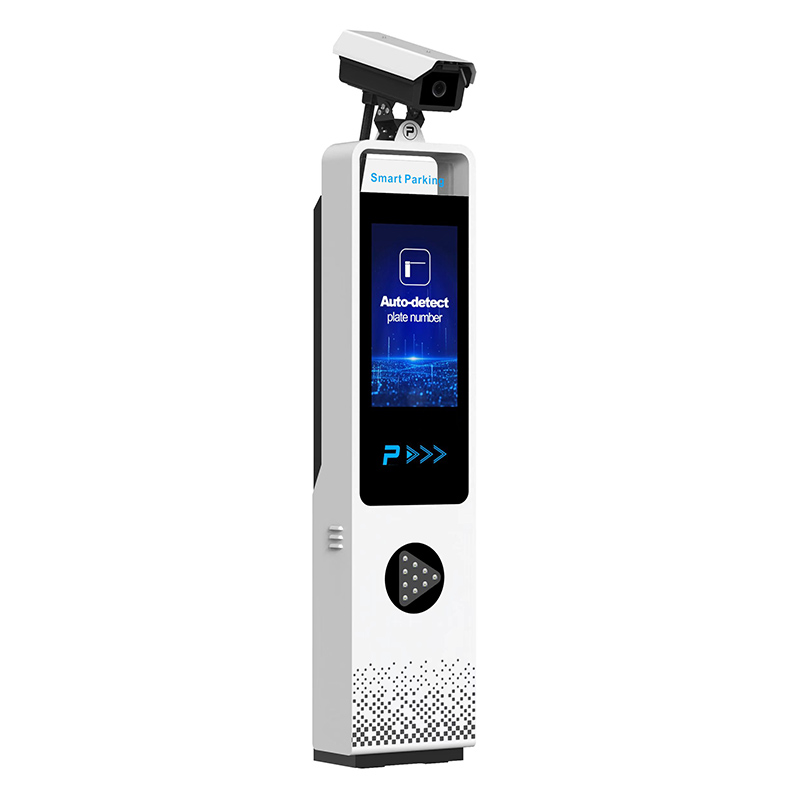

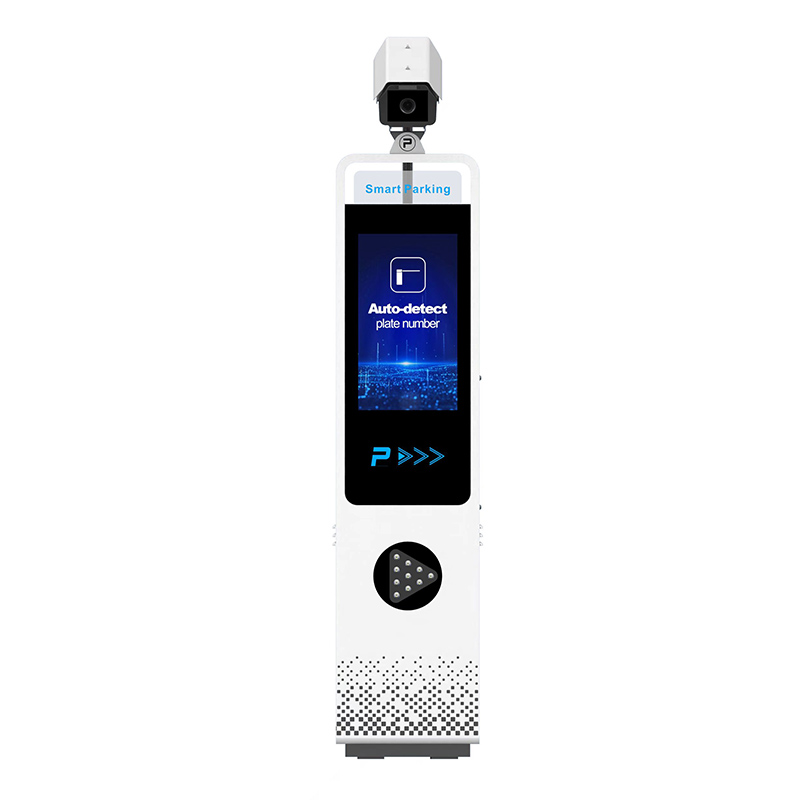

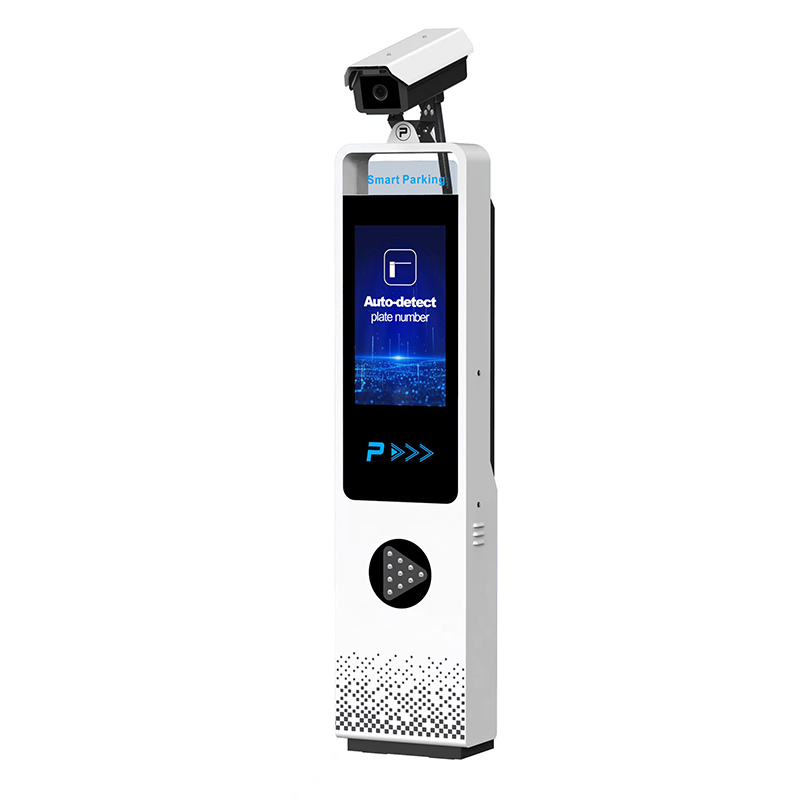

LPR All-in-one Machnie - LPR 201
From crowded parking garages to highway tolls, the ZOJE LPR201 all-in-one machine delivers over 99% recognition accuracy even in -20°C to 60°C extremes. Its starlight 2MP CMOS and dual-core CNN accelerator produce crisp images day and night, while adaptive fill light handles any gloom. The IP54-rated steel casing and 18.5-inch LCD endure rain, dust, and harsh sunlight. With TCP/IP, RS485, and optional 4G, it connects seamlessly to cloud management and existing networks. For operators and city planners, this system slashes manual ticketing, cuts labor costs, and prevents traffic bottlenecks—drivers enjoy smooth entry, staff appreciate minimal upkeep. A two-year warranty and ZOJE’s deep customization expertise make the LPR201 a durable, smart, and cost-effective investment for any entrance..
Send Inquiry
Product Description
Applications

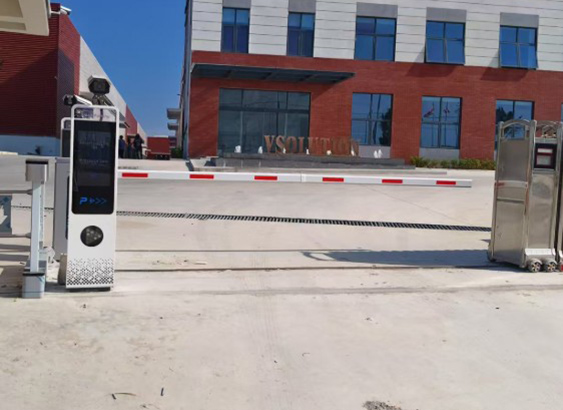

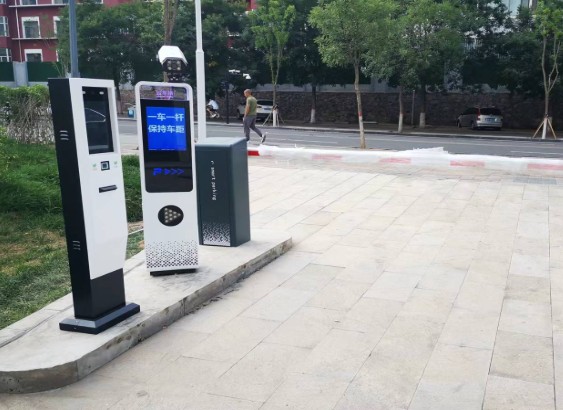

Parking Lots
Highways
Electronic Police Systems
Road Monitoring Systems
Highways
Electronic Police Systems
Road Monitoring Systems
Features
High Recognition Rate & All-Weather Reliability.
Advanced Hardware & Intelligent Algorithm.
Multi‑Function Integrated Applications.
Operational Efficiency & Cost Savings.
Cloud Management & Flexible Customization.
Advanced Hardware & Intelligent Algorithm.
Multi‑Function Integrated Applications.
Operational Efficiency & Cost Savings.
Cloud Management & Flexible Customization.
Datasheet
| Model： LPR all-in-one machine – LPR201 | |
| Operating Voltage: | AC110-220V±10% |
| Working Temperature: | -20°C~+60°C |
| Relative Humidity: | ≤95% without condensation (at room temperature) |
| Rated Power: | ≤60W |
| Communication Method: | TCP/IP、RS485 |
| Display Type: | P4 Red-Above-Green LED Module |
| Enclosure Protection Class: | IP54 |
| Material&Craftsmanship: | High-strength carbon steel, sheet metal spraying |
| Dimensions: | 1400*333*200mm (Height * Width * Depth, excluding external camera) |
| Camera Parameters | |
| CPU: | dual-core 900MHz processor+CNN hardware acceleration engine(0.5Tops) |
| Image Sensor: | 1/2.8" starlight-level CMOS |
| Max Resolution: | 1920(H)×1080(V) |
| Lowest Illumination: | 0.01Lux (Color) |
| ISP: | intelligent ISP,scene-adaptive |
| Data Output: | H265\H264\MJPEG\intelligent detection structured data output |
| Standard Confifiguration: | Standard 6mm prime lens |
| Comprehensive capturingrecognition rate: | Comprehensive capturing rate≥99.99%; comprehensiverecognition rate≥99% |
| License Plate RecognitionFunction: | White list of license plates, intelligent calibration |
| Network Interface: | 1-channel 10/100Mbps adaptive RJ45 |
| Other Interfaces: | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
| USB: | 1 USB Type-A interface (optional 4G module) |
| TF Card Slot: | 1l TF card slot, supporting 512G at maximum) |
| Service: | Basic services, supporting various types of secondary development |
| Working temperature | -35℃~+70℃ |
| Fill Light Parameters | |
| Number of LED Beads: | 10 pieces |
| Maximum Power: | 10W |
| Fill Light Control: | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
| Fill Light Distance: | Illuminance greater than 50LUX at a distance of 5 meters |
| Adjustment Angle: | Support |
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
Quality Assurance
All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.
Technology

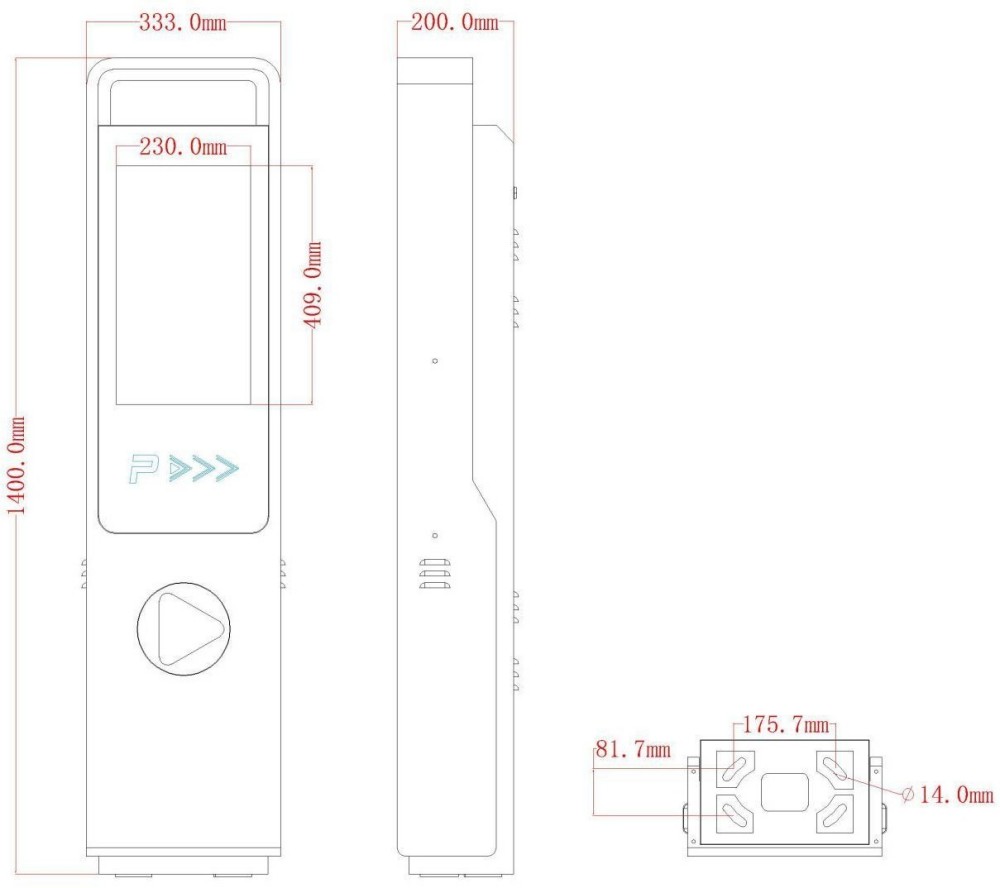

Dimensional drawing (mm)
