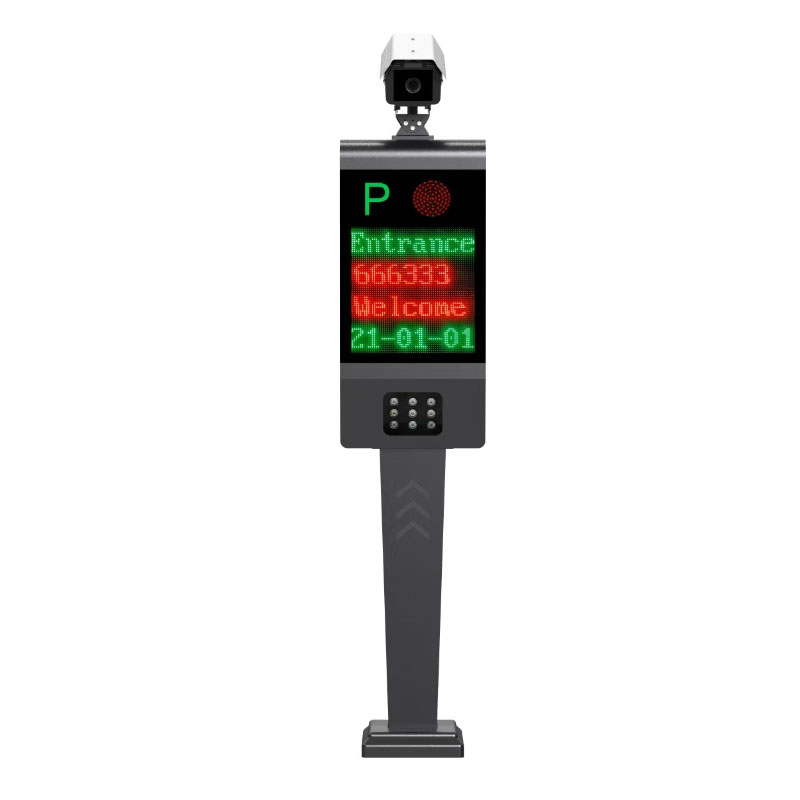

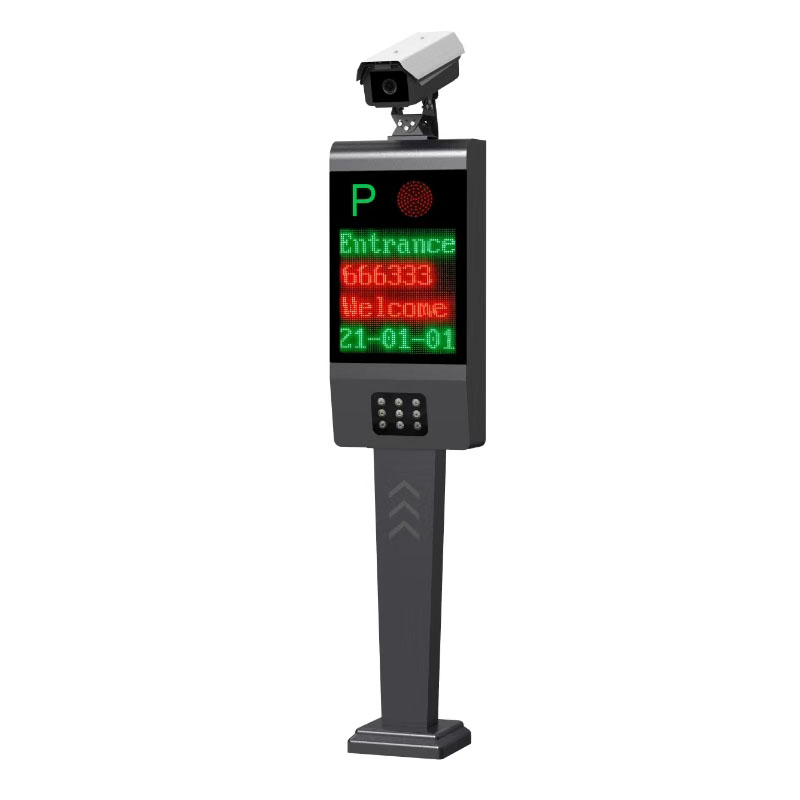

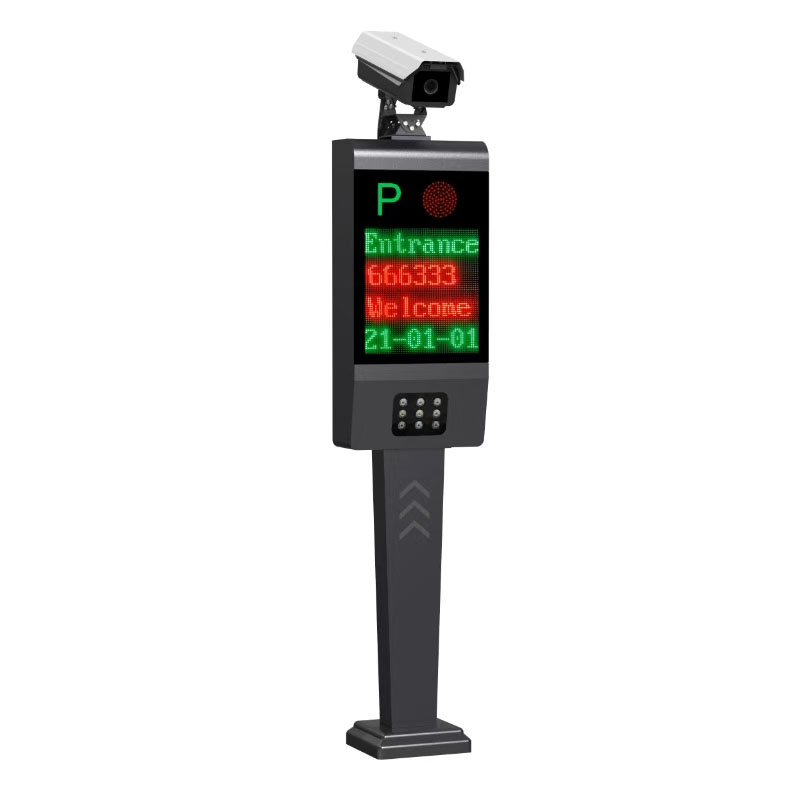

LPR All-in-one Machnie - LPR 101
ZOJE LPR101all-in-one machine is a high-performance license plate recognition system that automates parking, traffic, and EV charging management with over 95% all-weather accuracy. Powered by starlight imaging and a dual-core CNN accelerator, it delivers crisp capture in any light, while cloud support allows centralized control across multiple sites. This solution eliminates entry-exit delays, reduces manual checks, and lowers operational costs, making traffic flow smoother and safer. Ideal for parking lots, highways, and e-police networks, LPR101 offers robust hardware, minimal maintenance, and flexible customization to fit any project scale. Backed by a two-year warranty, it ensures long-term reliability.
Send Inquiry
Product Description
Applications
Parking Lots
Highways
Electronic Police Systems
Road Monitoring Systems
Highways
Electronic Police Systems
Road Monitoring Systems
Features
High Recognition Rate & All-Weather Reliability.
Advanced Hardware & Intelligent Algorithm.
Multi‑Function Integrated Applications.
Operational Efficiency & Cost Savings.
Cloud Management & Flexible Customization.
Advanced Hardware & Intelligent Algorithm.
Multi‑Function Integrated Applications.
Operational Efficiency & Cost Savings.
Cloud Management & Flexible Customization.
Datasheet
| Model： LPR all-in-one machine – LPR101 | |
| Operating Voltage: | AC110-220V±10% |
| Working Temperature: | -20°C~+60°C |
| Relative Humidity: | ≤95% without condensation (at room temperature) |
| Rated Power: | ≤60W |
| Communication Method: | TCP/IP、RS485 |
| Display Type: | P4 Red-Above-Green LED Module |
| Enclosure Protection Class: | IP54 |
| Material&Craftsmanship: | High-strength carbon steel, sheet metal spraying |
| Dimensions: | 360*150*1490mm (Height * Width * Depth, excluding external camera) |
| Camera Parameters | |
| CPU: | dual-core 900MHz processor+CNN hardware acceleration engine(0.5Tops) |
| Image Sensor: | 1/2.8" starlight-level CMOS |
| Max Resolution: | 1920(H)×1080(V) |
| Lowest Illumination: | 0.01Lux (Color) |
| ISP: | intelligent ISP,scene-adaptive |
| Data Output: | H265\H264\MJPEG\intelligent detection structured data output |
| Standard Confifiguration: | Standard 6mm prime lens |
| Comprehensive capturingrecognition rate: | Comprehensive capturing rate≥99.99%; comprehensiverecognition rate≥99% |
| License Plate RecognitionFunction: | White list of license plates, intelligent calibration |
| Network Interface: | 1-channel 10/100Mbps adaptive RJ45 |
| Other Interfaces: | IO output: 2-channel, IO input: 4-channel, RS485: 1-channel |
| USB: | 1 USB Type-A interface (optional 4G module) |
| TF Card Slot: | 1l TF card slot, supporting 512G at maximum) |
| Service: | Basic services, supporting various types of secondary development |
| Working temperature | -35℃~+70℃ |
| Fill Light Parameters | |
| Number of LED Beads: | 10 pieces |
| Maximum Power: | 10W |
| Fill Light Control: | Intelligent light sensitivity control, adjusts brightness based on ambient light intensity |
| Fill Light Distance: | Illuminance greater than 50LUX at a distance of 5 meters |
| Adjustment Angle: | Support |
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
Quality Assurance
All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.
Technology

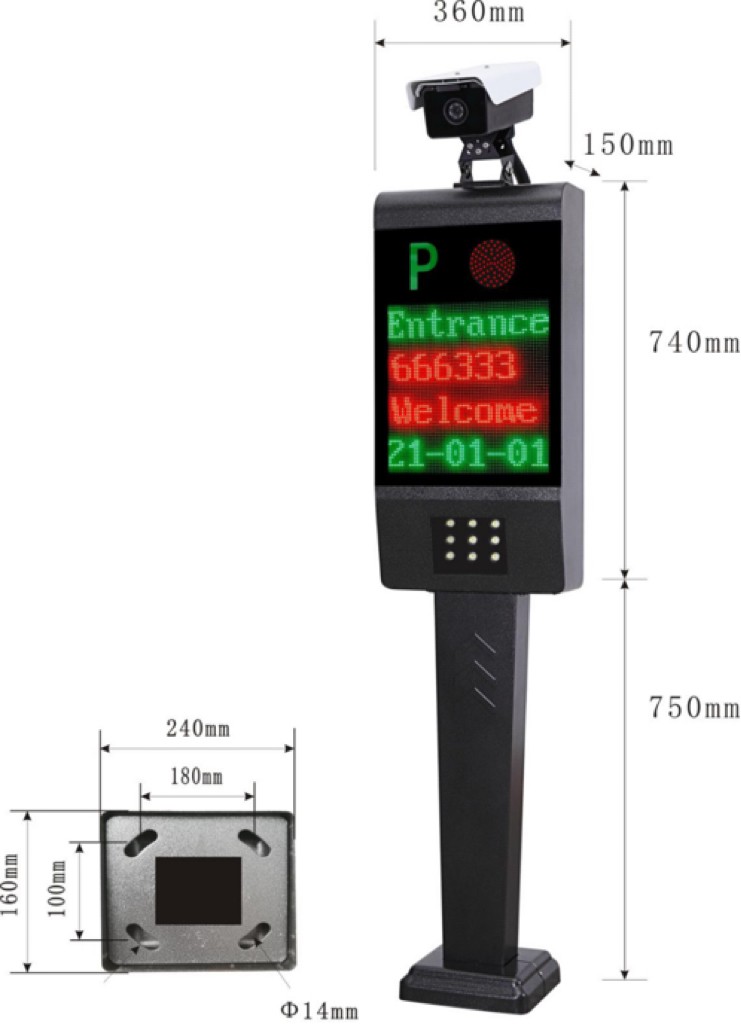

Dimensional drawing (mm)
