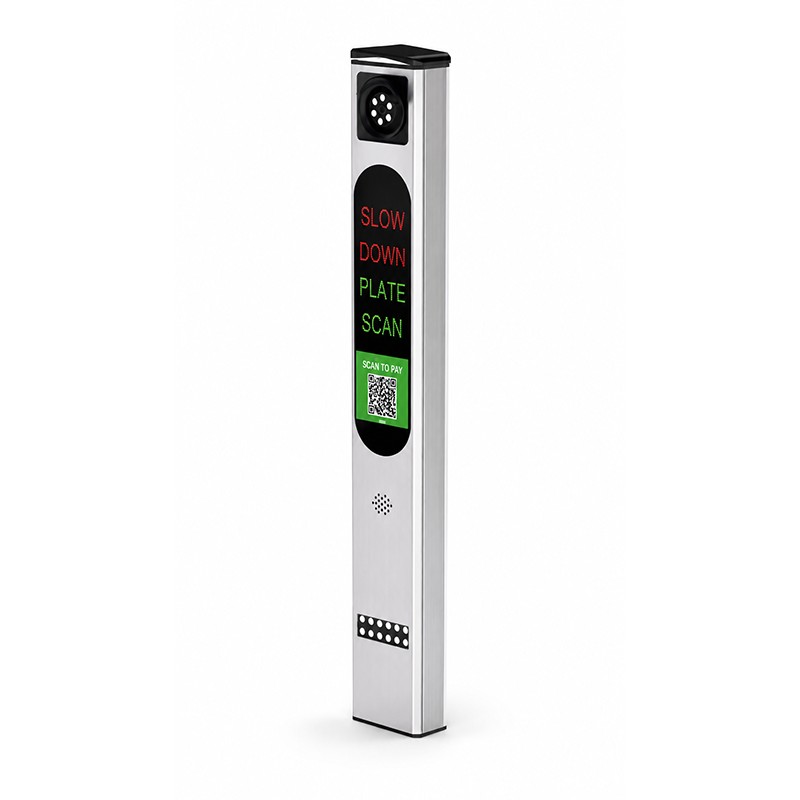

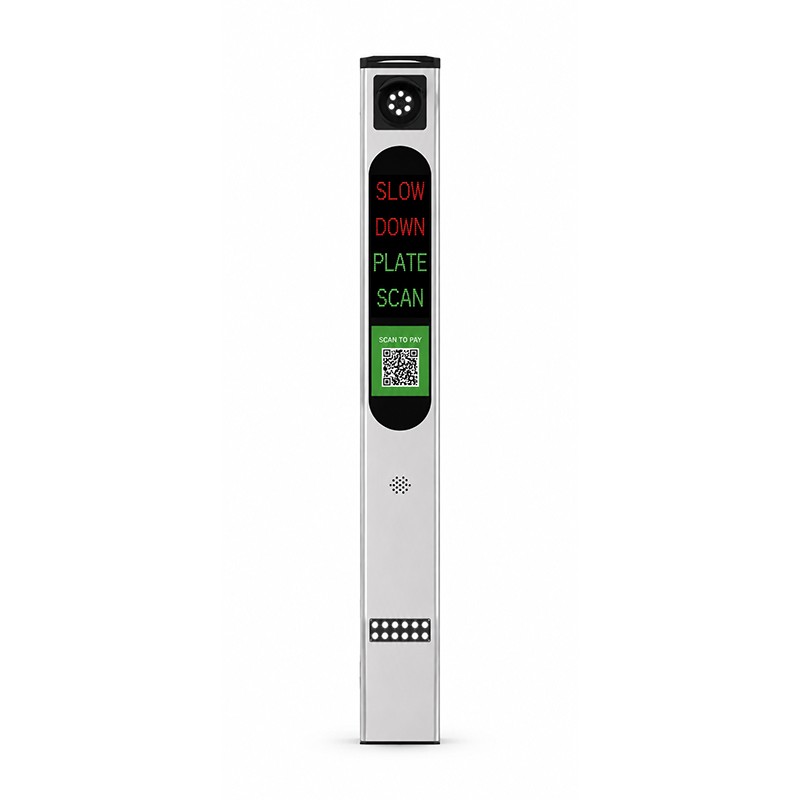

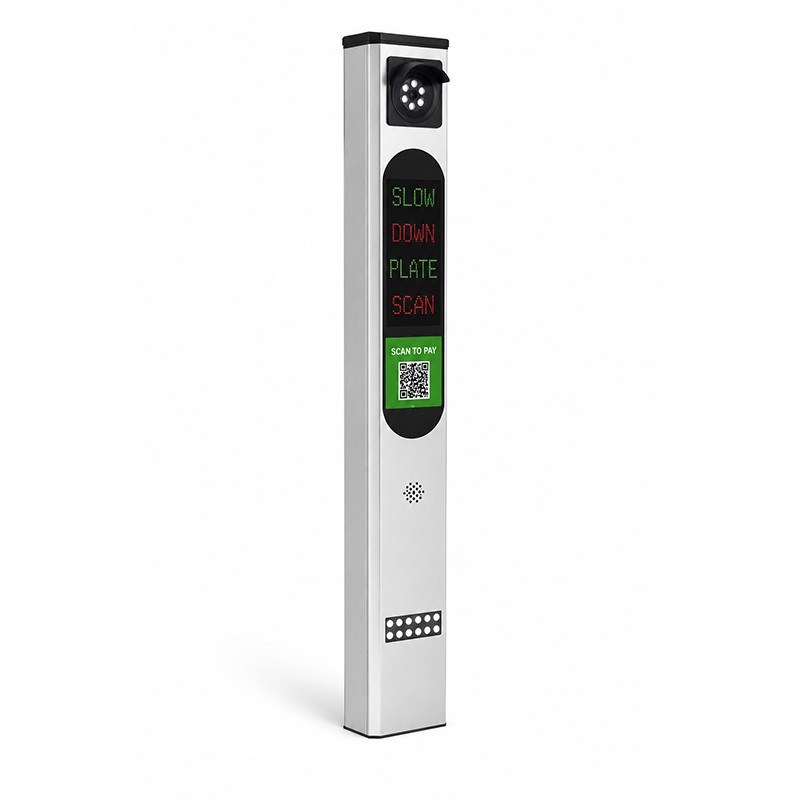

Intelligent All-in-One LPR Terminal - ZOJE-LPR218
ZOJE-LPR218 is a slim all-in-one ANPR terminal that combines license plate capture, recognition, LED information display, voice guidance and fill lighting in one outdoor cabinet. With scene-adaptive imaging, whitelist management, TCP/IP and RS485 communication, it provides fast and reliable lane control for parking entrances and exits while occupying minimal installation space.
Send Inquiry
Product Description
ZOJE-LPR218 is designed for automated access lanes where compact construction and dependable identification are required. Its 1/2.8-inch starlight CMOS camera, 6 mm fixed lens and intelligent ISP support clear capture in changing light conditions, while the integrated ten-LED fill light automatically adjusts to ambient brightness. The device provides an overall capture rate of at least 99.99% and recognition rate of at least 99%, with whitelist management and intelligent calibration for practical deployment. A red/green P4 LED module and built-in speaker deliver visible and audible guidance to drivers. TCP/IP, RS485, configurable I/O, USB and TF-card support simplify integration with barriers and parking software. The powder-coated high-strength carbon steel housing is only 202 mm wide, making it suitable for lanes with limited installation space.
Applications
Parking entrances and exits
Shopping centers and mixed-use developments
Residential communities and office campuses
Airports and transportation hubs
Industrial parks and controlled-access facilities
Shopping centers and mixed-use developments
Residential communities and office campuses
Airports and transportation hubs
Industrial parks and controlled-access facilities
Features
Integrated ANPR camera, red/green LED display, voice output and fill light.
Overall capture rate >=99.99% and overall recognition rate >=99%.
1/2.8-inch starlight CMOS sensor with scene-adaptive intelligent ISP.
Whitelist management, intelligent calibration and flexible barrier-control interfaces.
Slim 202 mm cabinet for space-constrained lanes, with IP54 enclosure protection.
Overall capture rate >=99.99% and overall recognition rate >=99%.
1/2.8-inch starlight CMOS sensor with scene-adaptive intelligent ISP.
Whitelist management, intelligent calibration and flexible barrier-control interfaces.
Slim 202 mm cabinet for space-constrained lanes, with IP54 enclosure protection.
Datasheet
| General Specifications | |
| Type | All-in-one ANPR terminal |
| Operating Voltage | AC 110-220 V +/-10% |
| Working Temperature | -20 C to +60 C |
| Relative Humidity | <=95%, non-condensing at ambient temperature |
| Rated Power | <=60 W |
| Communication | TCP/IP, RS485 |
| Display Type | P4 red/green LED module |
| Enclosure Protection | IP54 |
| Housing Material | High-strength carbon steel; powder-coated sheet-metal construction |
| Dimensions | 1400 x 202 x 134 mm (H x W x D, excluding camera projection) |
| Camera Parameters | |
| CPU | Dual-core 900 MHz processor + CNN hardware acceleration engine (0.5 TOPS) |
| Image Sensor | 1/2.8-inch starlight CMOS |
| Maximum Resolution | 1366 (H) x 768 (V) |
| Minimum Illumination | 0.01 lux (color) |
| ISP | Intelligent ISP, scene-adaptive |
| Video / Data Output | Structured intelligent-detection data; H.265 / H.264 / MJPEG |
| Standard Lens | 6 mm fixed lens |
| Capture and Recognition | Overall capture rate >=99.99%; overall recognition rate >=99% |
| Plate Functions | License-plate whitelist and intelligent calibration |
| Camera Interfaces and Services | |
| Network Interface | 1 x adaptive 10/100 Mbps RJ45 |
| Other Interfaces | 2-channel I/O output; 4-channel I/O input; 1-channel RS485 |
| USB | 1 x USB Type-A interface; optional 4G module |
| TF Card Slot | 1 slot; supports up to 512 GB |
| Service | Basic services; supports multiple forms of secondary development |
| Fill Light Parameters | |
| LED Quantity | 10 LEDs |
| Maximum Power | 10 W |
| Brightness Control | Photosensitive intelligent control; adjusts to ambient light intensity |
| Illumination Distance | >50 lux at 5 m |
| Adjustment Angle | Supported |
Warranty
The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.
Quality Assurance
All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.

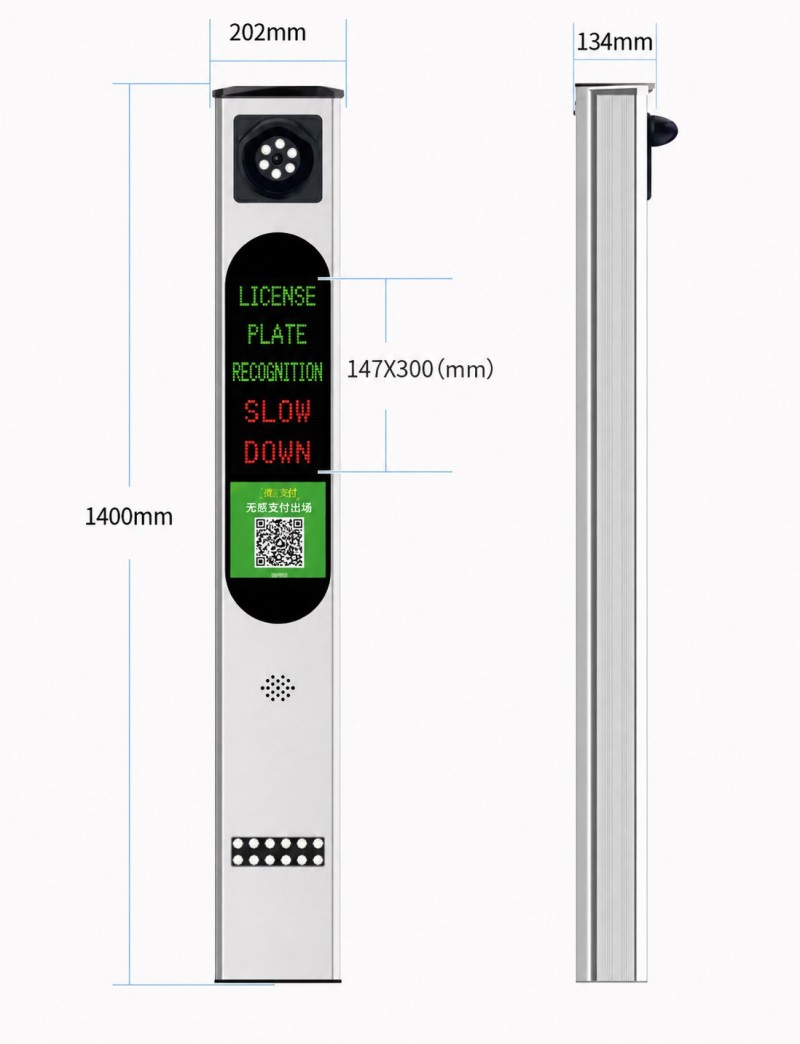

Dimensional drawing (mm)
