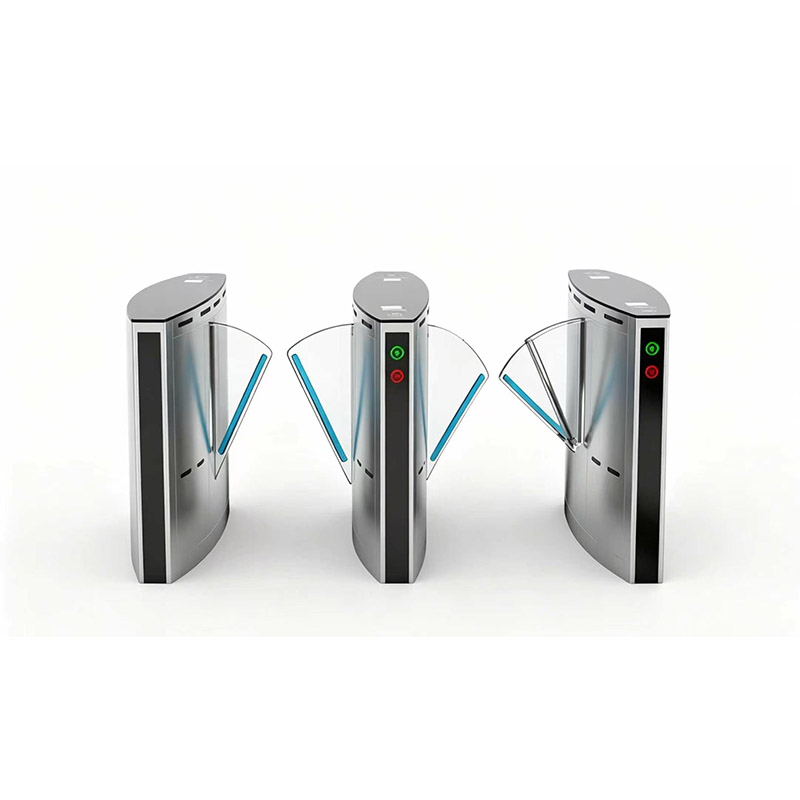

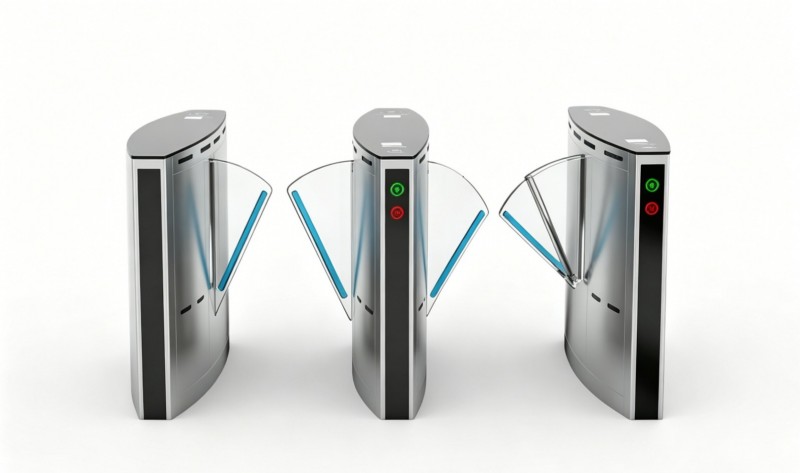

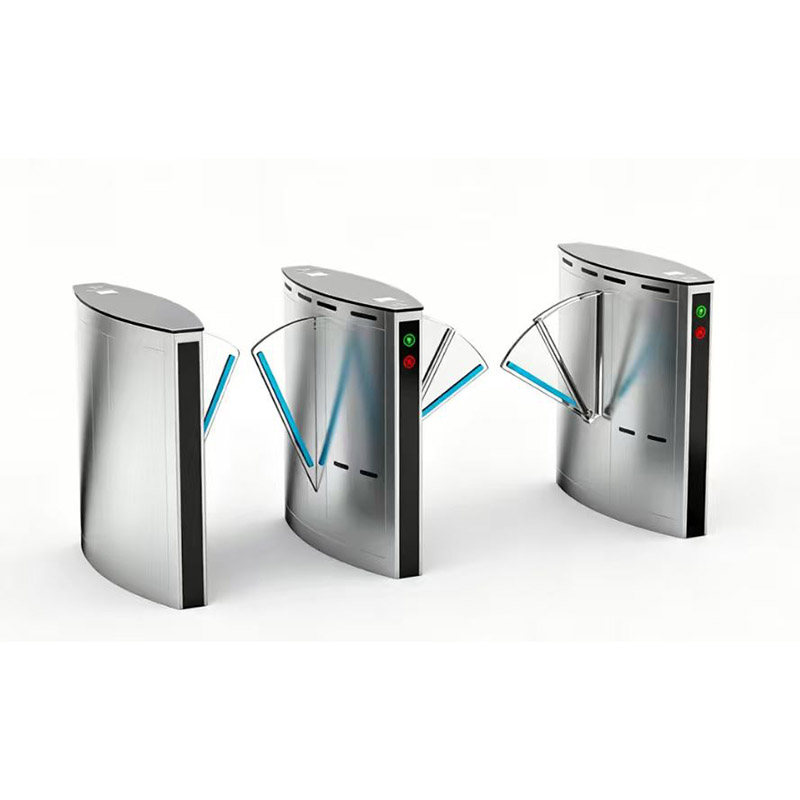

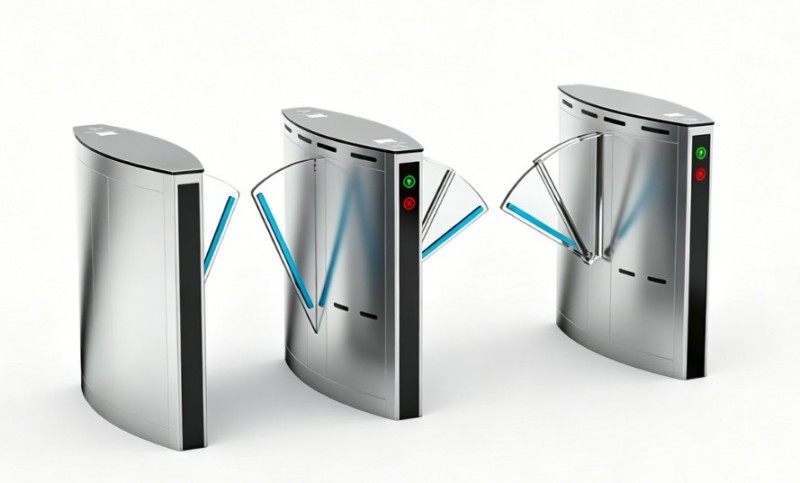

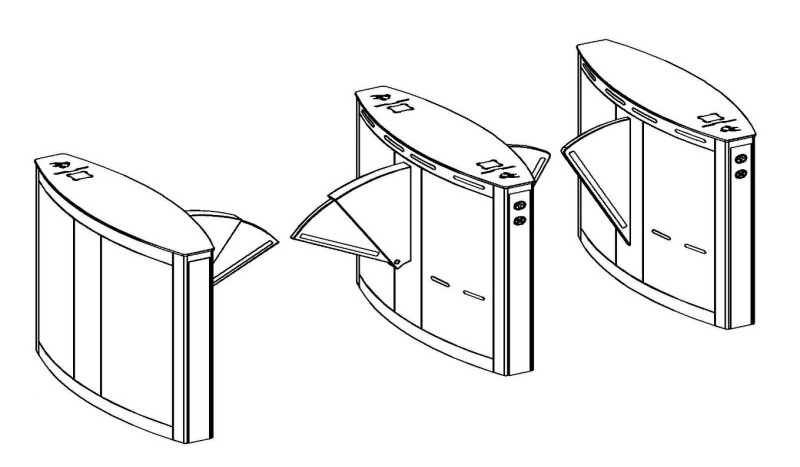

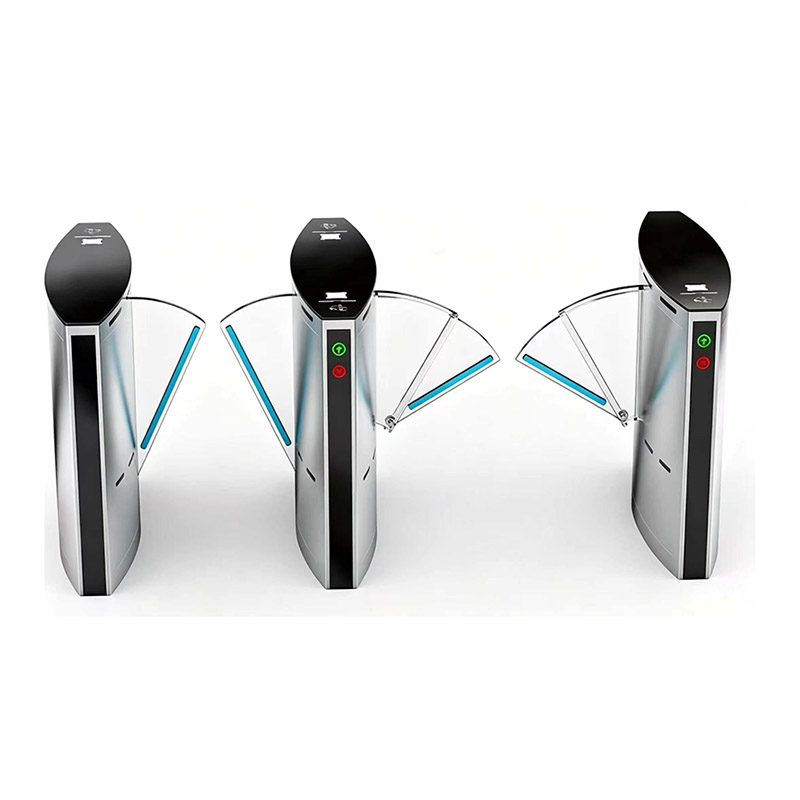

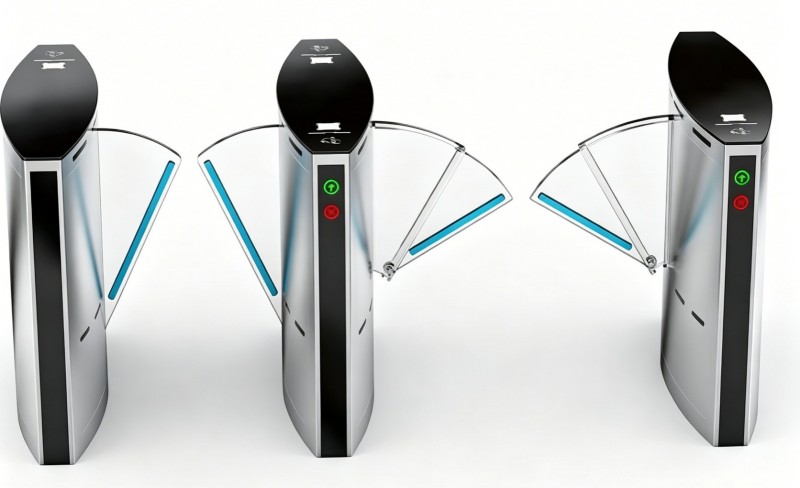

Flap Turnstile Gate-Y307

Crafted with premium 304/316 stainless steel, the ZOJE Flap turnstile gate Y307 delivers reliable and efficient pedestrian access control for offices, airports, schools and more. Boasting a 0.2s ultra-fast unlock speed, anti-clamping protection and IP67 waterproof performance, it handles 35 people per minute smoothly. Equipped with self-developed mechanical structure and diverse safety alarms, this versatile gate supports bidirectional access and seamless access control integration, ensuring secure, orderly and worry-free passage all day long.

Send Inquiry

Product Description

Cylindrical swing gate turnstile ZOJE-B307 standard diameter is 168mm, which can be customized according to specific project needs. Also, it can be made into different colors by painting. As usual, this swing turnstile can work as single way or bidirectional passage.
Customers can choose 316 instead of the standard 304 stainless steel for longer lifespan serving in severe circumstances.

Applications

Office and administrative
buildings
Ministries and government buildings
Banks and financial institutions
Airports
Metro stations
Coach terminals
Tourist destinations
Industrial buildings
Schools and universities

Applications

Office and administrative buildings
Ministries and government buildings
Banks and financial institutions
Airports
Metro stations
Coach terminals
Tourist destinations
Industrial buildings
Schools and universities

Features

Anti-trapping
Intrusion alarm
Retractable wings
Tailgating alarm
Anti-destruction
Leave aisle timeout
Wrong way direction detection
Fail-Safe via battery back-up opening
Self-designed mechanical structure

Datasheet

Type:	Flap Gate-Y307
Cabinet material：	304/316 stainless steel

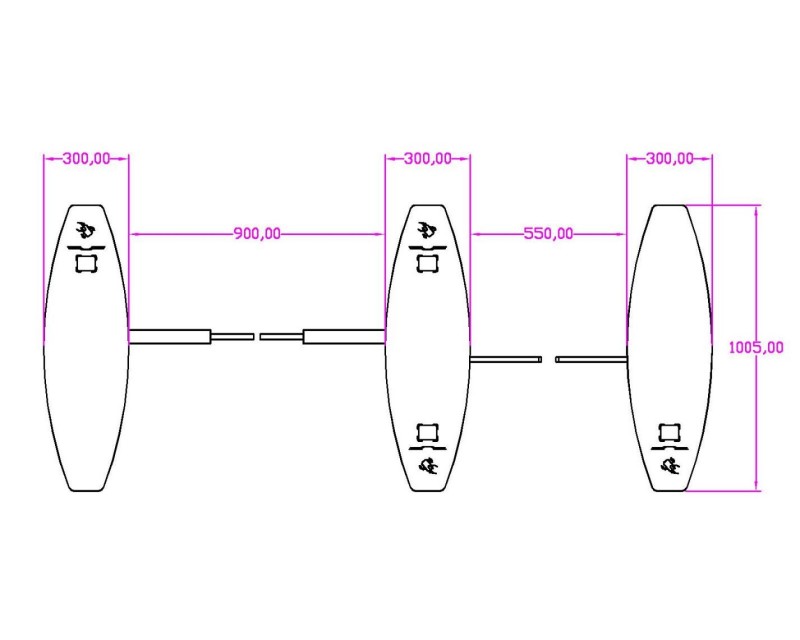

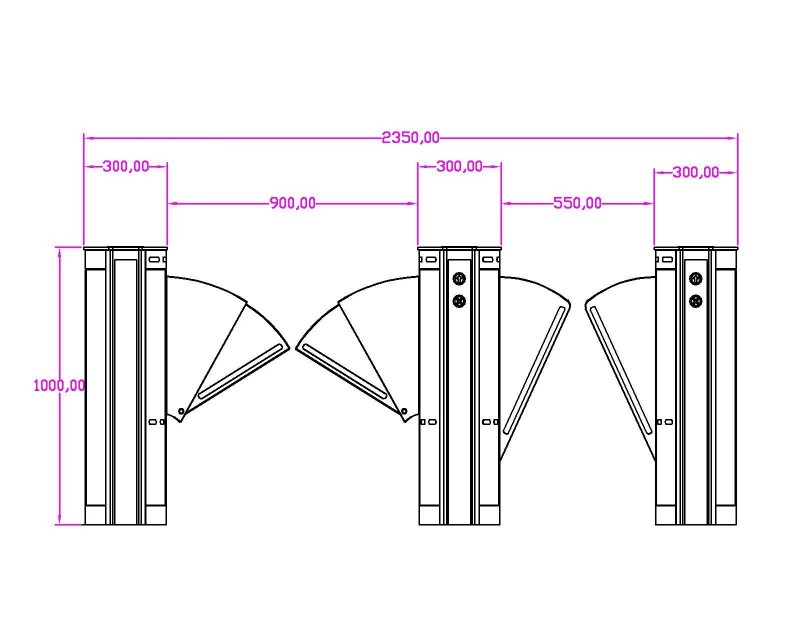

Dimension:	10053001000mm(LWH)
Passage Width:	550mm-900mm/850mm(for wheelchair)
Working Temperature：	-30°C~+70°C
Unlock time：	0.2s
Power Supply：	AC 110V-220V, 50/60Hz
Operation Voltage：	DC24V,3A
Function：	Fail safe, anti-clamping, anti-pinching
Door Material：	Acrylic/Tempered glass
Drive Type：	Brush/Brushless/Servo motor
Direction：	Single / Bidirectional
Relative Humidity：	Less Than 95%, No Condensation
Pass Speed：	35 person/Minute
Input Interface：	Dry contact/Relay Signal
Communication Interface	RS485/TCPIP
LED Indicator	Yes
Emergency：	Open Automatic
Waterproof:	IP 67
Access control:	Can be integrated with any kind of access control

Optional

Cabinet Material: 316 stainless steel.
Door Material: Tempered glass.
Motor: Brushless motor/ Servo motor
Passage Width: 850mm(for wheelchair).

Tips

All ZOJE turnstile gates are built with self-designed mechanical structure for stable and long-time operation.

Warranty

The warranty period is Two years commencing from the date of leave factory, unless otherwise determined in the delivery contract of the Product.

Advantages

Fast Delivery Promise.
Standard configurations ship within 5-7 days.
Custom solutions typically deliver in 10-15 day.
Complete Customization Options.
Support OEM/ODM cooperation.
24/7 Global Support.

Quality Assurance

All products comply with ISO 9001:2015 standards and come with our comprehensive two-year warranty. Multiple patent certifications demonstrate our commitment to innovation and quality.
