Fence swing gate
  • Fence swing gateFence swing gate
  • Fence swing gateFence swing gate
  • Fence swing gateFence swing gate
  • Fence swing gateFence swing gate

Fence swing gate

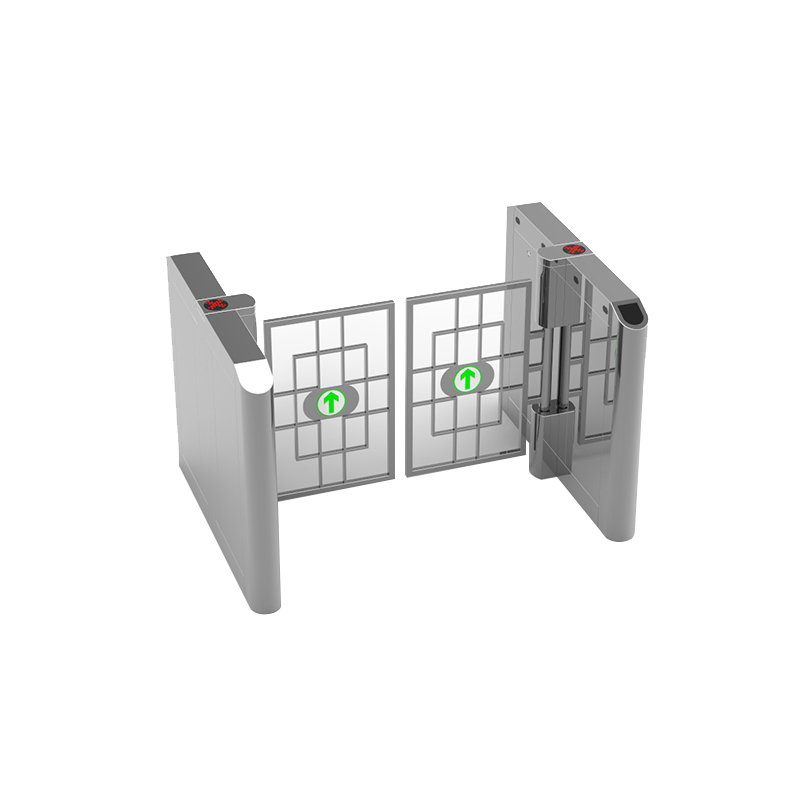

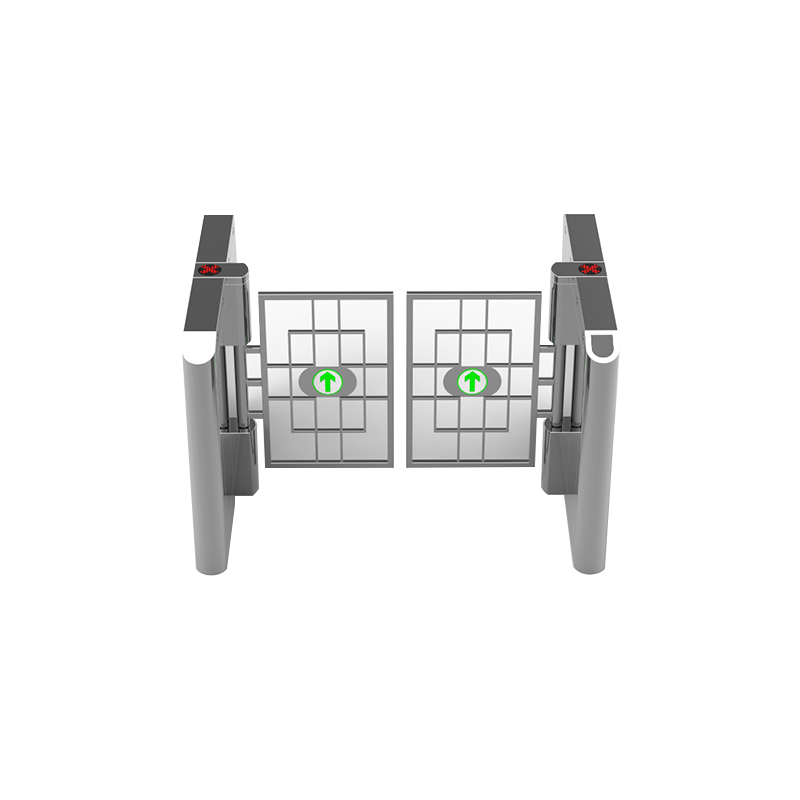

ZOJE-B407® fence swing gate turnstile features a pair of classical Chinese style doors, which makes it outstanding in the whole swing turnstile market.The slim cabinet and unique doors make this ZOJE-B407 fence swing gate elegant for different applications.The height of the door panel can be customized according to different project requirements.

Send Inquiry    PDF DownLoad

Product Description


Fence swing gate

ZOJE-B407® fence swing gate turnstile Standard material of the housing is 304 stainless steel, also available in 316 as requested.
Self-designed mechanical structure together with powerful motor enables the turnstile running smoothly and stably in the long run. Brushless or servo motors are optional choices.
Generally speaking, swing turnstile gates have relatively wider passage compared to other turnstiles. Even so, the passage width can be customized much larger for different purposes, for example, parents with baby carriages, disabled people with wheelchairs, etc.
Despite its slim design, swing gate turnstile ZOJE-B407 can be integrate with different access control modules,such as QR code scanner, bar code scanner, IC/ID/RFID card reader, fingerprint or face recognition, etc.

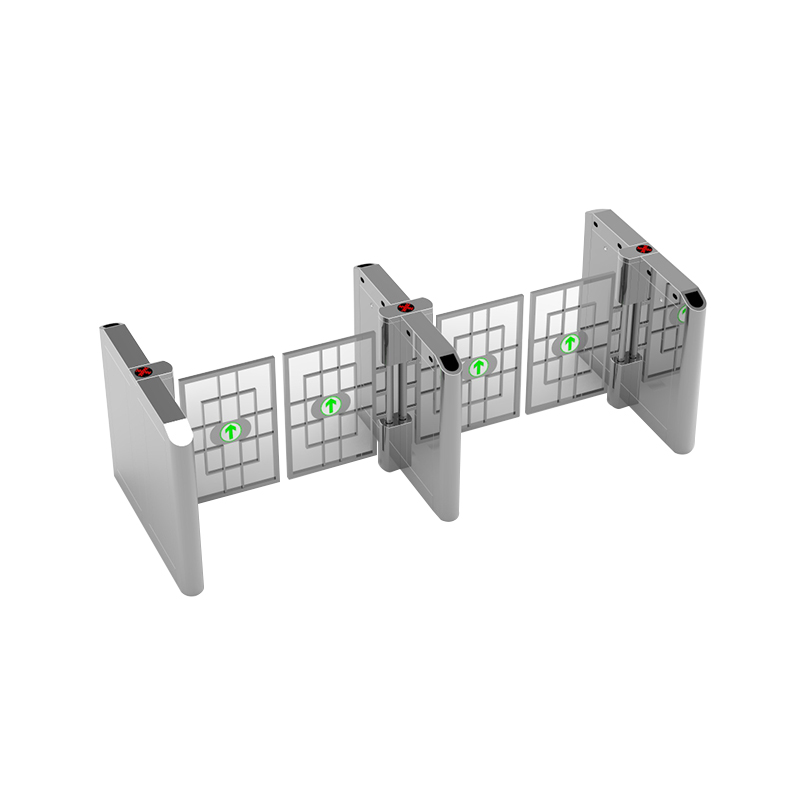

Each cabinet can be equipped with double motors for easy and convenient assembling of multiple-lane pedestrian passages.


Product Parameter (Specification)


Standard Optional
Turnstile Type Speed gate turnstile -
Dimension 1400*210*1000mm (L*W*H) Customized
Material 304 Stainless Steel 316 Stainless Steel
Channel Width 600mm 900mm /Customized
Door Material Acrylic Tempered glass
Drive Type Brush motor Brushless/Servo motor
Unlock time 0.2S -
Direction Single / Bidirectional -
Power Supply AC110-230,50/60Hz -
Operation Voltage DC24V,3A -
Function Fail safe, anti-clamping,anti-pinch -
Working environment Indoor & outdoor -
Working Temperature -70 C -15 C -
Relative Humidity Less Than 95%, No Condensation -
Pass Speed 35 person/Minute -
Input Interface Dry contact/Relay Signal -
Communication Interface RS485/TCPIP -
LED Indicator Yes -
Emergency Open Automatic -
Waterproof IP67 -
Access Control Can be integrated with any kind of access control system. -

Product Feature And Application

ZOJE-B407 Fence swing gate turnstile
●Unique technology: Self-developed mechanical structure together with powerful motor enables the turnstile running smoothly and stably in the long run.
●The width of the channel can be customized according to project requirements
●Provide a variety of door selection, height can be customized according to demand
●The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
●Equipment With Traffic Indicator
●Equipment With Automatic Protection, Automatic Reset
●Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code / ESD system)
●ZOJE-B407 fence swing gate turnstile widely used in office building,government buildings and other place
