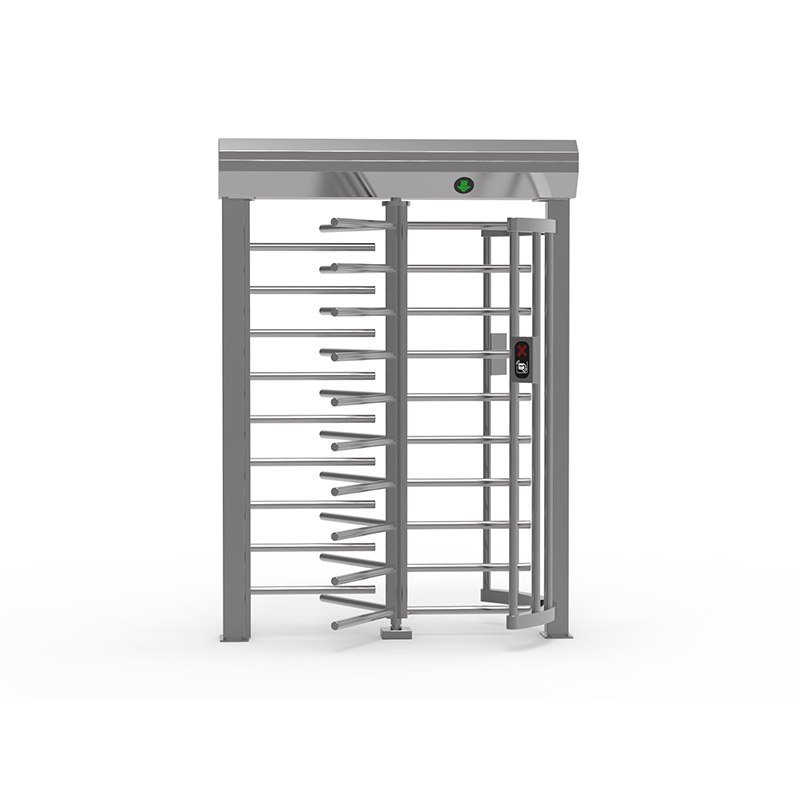

120 degrees full height turnstile
Full height turnstiles operates like a revolving door. The only difference is that it allows only one person at a time to get accessed by automatic locking after one entry is finished. It would be impossible for someone to crawl under or climb over these full height turnstile gates as they offer maximum security.
ZOJE-Z2001® 120 degrees full height turnstile can choose single channel or dual channel according to your project needs.
It comes with standard semi-automatic version with solenoid unlocking, automatic version with different motor unlocking as optional choice.
It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
We are also professional customize as your idea or project. Contract with our sales get a professional and suitable solution for you
Product Parameter (Specification)
|
Standard
|
Optional
|
Turnstile Type
|
120 degrees full height turnstile
|
-
|
Dimension
|
1500*1240*2250mm (L*W*H)
|
Customized
|
Material
|
304 Stainless Steel
|
316 Stainless Steel
|
Channel Width
|
600mm
|
900mm /Customized
|
Drive Type
|
Semi-Automatic(Solenoid)
|
Tempered glass/Red Soft shell
|
Direction
|
Single / Bidirectional
|
Brushless/Servo motor
|
Power Supply
|
AC110-230,50/60Hz
|
-
|
Operation Voltage
|
DC24V,3A
|
-
|
Unlock time
|
0.2S
|
-
|
Function
|
Fail safe
|
-
|
Working environment
|
Indoor & outdoor
|
-
|
Working Temperature
|
-70 C -15 C
|
-
|
Relative Humidity
|
Less Than 95%, No Condensation
|
-
|
Pass Speed
|
35/Minute
|
-
|
Input Interface
|
Dry contact/Relay Signal
|
-
|
Communication Interface
|
RS485/TCPIP
|
-
|
LED Indicator
|
Yes
|
-
|
Emergency
|
Unlock Automatic
|
-
|
Access Control
|
Can be integrated with any kind of access control system.
|
-
|
Product Feature And Application
ZOJE-Z2001 120 degrees full height turnstile
●Unique technology: Fully automatic is optional for smoother, quieter operation and longer service life
●The material is made of industrial grade stainless steel 304 or 316, which is durable and can be installed in harsh environments
●Its anti-tailgating function is relatively high and can achieve unattended management.
●Equipment With Traffic Indicator
●Equipment With Automatic Protection, Automatic Reset
●Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code / ESD system)
●ZOJE 120-degrees full height turnstile widely used in places with high security levels, and can be easily integrated with your existing control software.
Product Details
