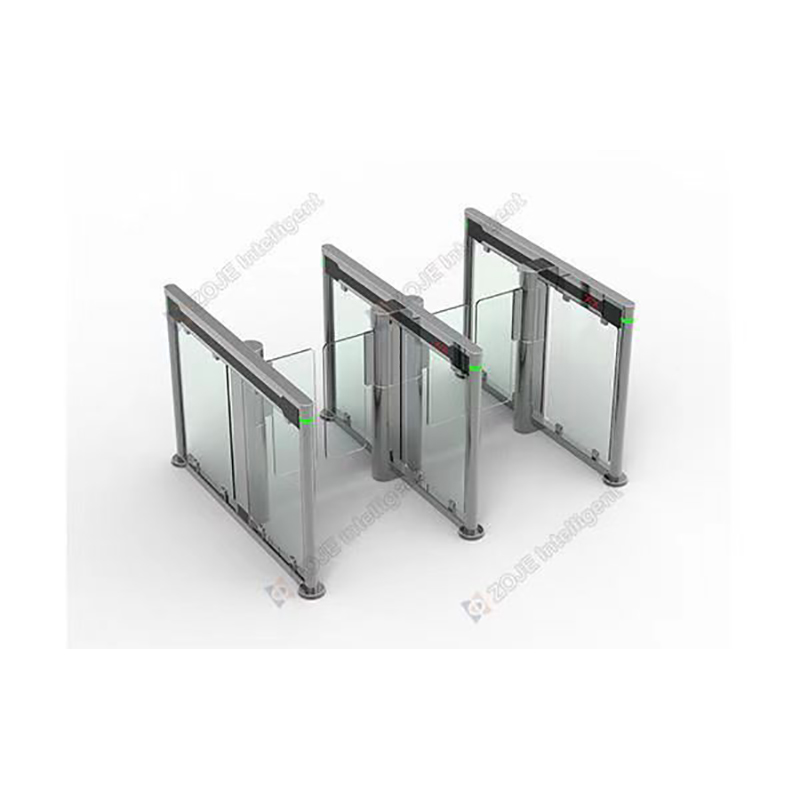

Slim speed turnstile gate
ZOJE-BST100® Slim speed turnstile gate will be perfectly suitable for any modern buildings thanks to its unique and futuristic styling.Its slim cabinet can be driven by Brushless or Servo motors.Widely applied to high pedestrian flow areas. They are popular in corporation headquarters, public library lobbies,university facilities, etc.
Send Inquiry PDF DownLoad
Product Description
Slim speed turnstile gate
As they allow quick access, ZOJE® Slim speed turnstile gate is very popular among different types of turnstiles. Any turnstile gate with optical components can be defined as a speed gate due to its high throughput ability.
With card readers and pairs of infra-red sensors applied, ZOJE speed gate turnstiles will be able to confirm their entry credentials rapidly and process pedestrian traffic quickly, which makes them outstanding of all the turnstile gates.
These optical speed gate turnstiles are able to control one-way or bi-directional enter or exit accordingly.
Standard and customized width are both available for these speed gate turnstiles.
Swing doors can be illuminated with additional colorful LED lights to make them more beautiful.
It can be integrated with any kind of access controller system (e.g.: RFID device, QR code, Fingerprint and face recognition).
Size and shapes can be customized. Welcome to contact us for more details.
Product Parameter (Specification)
|
|
Standard | Optional |
|---|---|---|
| Turnstile Type | Sliding turnstile gate | - |
| Dimension | 1400*65/172.5*1000mm (L*W*H) | Customized |
| Material | 304 Stainless Steel | 316 Stainless Steel |
| Channel Width | 600mm | 900mm /Customized |
| Door Material | Acrylic | Tempered glass |
| Drive Type | Brush motor | Servo motor |
| Unlock time | 0.2S | - |
| Direction | Single / Bidirectional | - |
| Power Supply | AC110-230,50/60Hz | - |
| Operation Voltage | DC24V,3A | - |
| Function | Fail safe, anti-clamping,anti-pinch | - |
| Working environment | Indoor & outdoor | - |
| Working Temperature | -70 C -15 C | - |
| Relative Humidity | Less Than 95%, No Condensation | - |
| Pass Speed | 35 person/Minute | - |
| Input Interface | Dry contact/Relay Signal | - |
| Communication Interface | RS485/TCPIP | - |
| LED Indicator | Yes | - |
| Emergency | Open Automatic | - |
| Access Control | Can be integrated with any kind of access control system. | - |
Product Feature And Application
ZOJE-BST100 slim speed gate turnstile
●Unique technology: Self-developed mechanical structure together with powerful motor enables the turnstile running smoothly and stably in the long run.
●The width of the channel can be customized according to project requirements
●The height of swing doors can be customized as needed.
●High sensitivity optical sensors are integrated to detect visitors approaching, ensuring top safety for all pedestrians.
●The Equipment Has A Device And Circuit Testing Function, Easy Maintenance
●Equipment With Traffic Indicator
●Equipment With Automatic Protection, Automatic Reset
●Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code / ESD system)
●ZOJE-BST100 slim speed gate turnstile widely used in office building,bank and other places, can be easily integrated with your existing control software.
