90 degrees full height turnstile
ZOJE-Z2004® 90 degrees full height turnstile is an upgraded version of the 120-degree full-height A set of swing arms has been added to make its safety factor higher. Anti-trailing function is more powerful. Also can be divided into full automatic full height turnstile and semi-automatic full height turnstile.Single channel and dual channels are available
Send Inquiry PDF DownLoad
Product Description
90 degrees full height turnstile

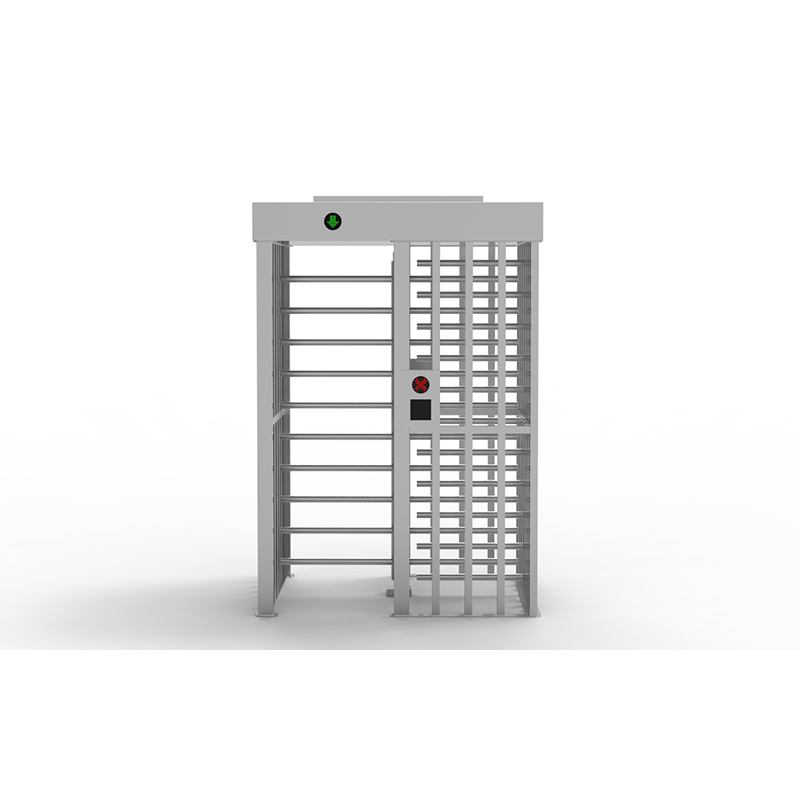

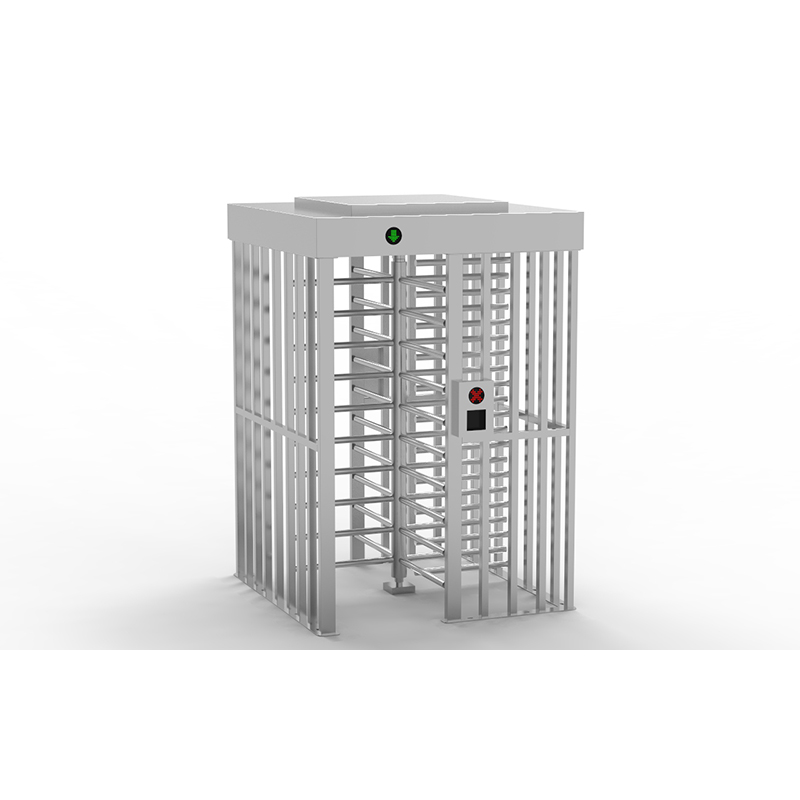

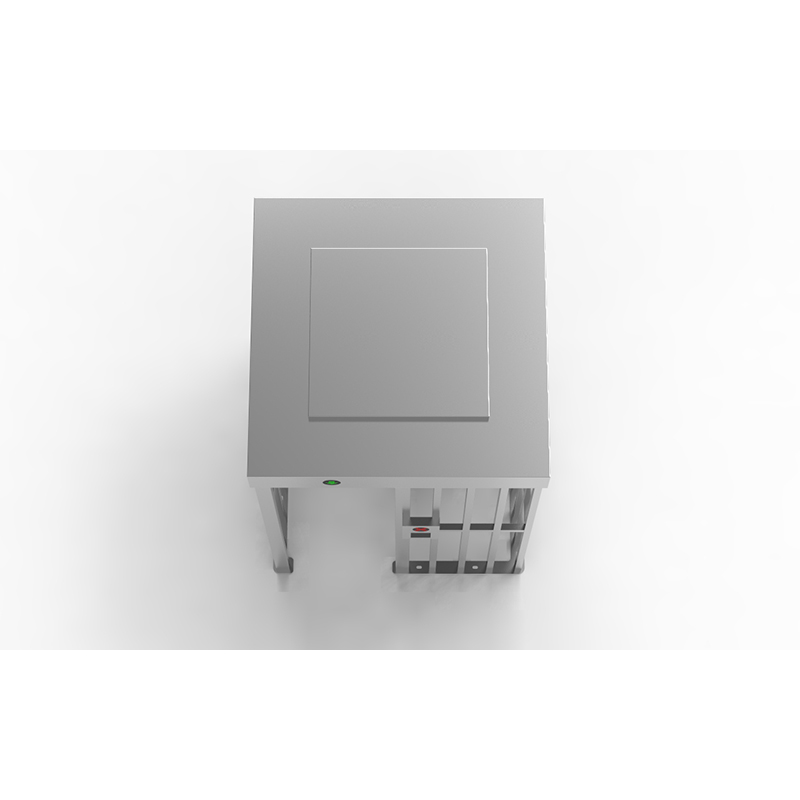

ZOJE-Z2004® 90 degrees full height turnstile
If you are in need of protecting the perimeter of your facilities, full height turnstiles would be your best solution.
Constructed from 304 stainless steel, ZOJE full height turnstile are designed for the highest level of security to maintain a long-term use. These full height turnstile gates can be applied to both indoor and outdoor use.
ZOJE-Z2004 90-degrees full height turnstile can choose single channel or dual channel according to your project needs.. This series of pedestrian turnstile gate is significantly space-efficient compared with two single turnstile gates installed side by side when requiring multiple lanes. These double or tandem full height turnstile gates can be supplied in fully welded or disassembled condition for convenient and economical transportation.
It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
We are also professional customize as your idea or project. Contract with our sales get a professional and suitable solution for you
Product Parameter (Specification)
|
|
Standard | Optional |
|---|---|---|
| Turnstile Type | 90-degrees full height turnstile | Dual channel |
| Dimension | 1500*1240*2250mm (L*W*H) | Customized |
| Material | 304 Stainless Steel | 316 Stainless Steel |
| Channel Width | 600mm | Customized |
| Drive Type | Semi-Automatic(Solenoid) | Automatic(Brush/Brushless/Servo motor） |
| Direction | Single / Bidirectional | - |
| Power Supply | AC110-230,50/60Hz | - |
| Operation Voltage | DC24V,3A | - |
| Unlock time | 0.2S | - |
| Function | Fail safe,Anti-trailing | - |
| Working environment | Indoor & outdoor | - |
| Working Temperature | -70 C -15 C | - |
| Relative Humidity | Less Than 95%, No Condensation | - |
| Pass Speed | 35/Minute | - |
| Input Interface | Dry contact/Relay Signal | - |
| Communication Interface | RS485/TCPIP | - |
| LED Indicator | Yes | - |
| Emergency | Open Automatic | - |
| Access Control | Can be integrated with any kind of access control system. | - |
Product Feature And Application
ZOJE-Z2004 90-degrees full height turnstile
●Unique technology: Fully automatic(Brush/Brushless/servo motor) is optional for smoother, quieter operation and longer service life
●The material is made of industrial grade stainless steel 304 or 316, which is durable and can be installed in harsh environment
●Its anti-tailgating function is relatively high and can achieve unattended management.
●Equipment With Traffic Indicator
●Equipment With Automatic Protection, Automatic Reset
●Unified standard external electrical interface, which can be connected with various reading and writing devices(ID Card / IC Card /EMcard / Fingerprint Face Recognition / QR Code / ESD system)
●90-degrees full height turnstile widely used in places with high security levels, and can be easily integrated with your existing control software.
